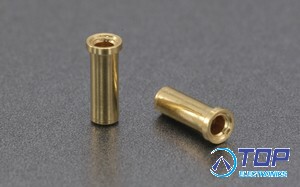

MS02, Socket, PC Pin Receptacles, (8-Pack)

More information

Stock
In stock
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
MS02
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 16.33 excl VAT
Quantity
Unit price
From 5 pcs€ 15.84
From 25 pcs€ 15.02

Product specifications

MS02 - Mating socket, PC Pin Receptacles, (8/Pk)

Specifications
Accepts Pin Diameter: ..........0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Contact Finish: ..................Gold
Contact Finish Thickness: ......30µin (0.76µm)
Contact Material: ............... Beryllium Copper
Features: ........................ Knockout Bottom
Flange Diameter: ............... 0.090" (2.29mm)
Length - Overall: ................ 0.221" (5.61mm)
Mounting Hole Diameter: ...... 0.075" (1.91mm)
Packaging: ...................... Bulk (8/PK)
Socket Depth: .................. 0.206" (5.23mm)
Tail Type: ....................... No Tail
Termination: .................... Solder

- APEX Microtechnology product -
