PA61, Power Op-Amp, 90V, 10A PEAK

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
PA61
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
3,1 - 10 A
Slew rate
0 - 50 V/µs
Supply Voltage
0 - 99V
€ 130.25 excl VAT
Quantity
Unit price
From 5 pcs€ 126.34
From 25 pcs€ 119.83

Product specifications

PA61 - Power Operational Amplifier, Power Op-Amp, 90V, 10A

The PA61 and PA61A are high output current operational amplifiers designed to drive resistive, inductive and capacitive loads. Their complementary emitter follower output stage is the simple class C type and optimized for low frequency applications where crossover distortion is not critical. These amplifiers are not recommended for audio, transducer or deflection coil drive circuits above 1kHz or when distortion is critical. The safe operating area (SOA) is fully specified and can be observed for all operating conditions by selection of user programmable current limiting resistors. Both amplifiers are internally compensated for all gain settings. For continuous operation under load, mounting on a heatsink of proper rating is recommended.

This hybrid circuit utilizes thick film conductors, ceramic capacitors, and semiconductor chips to maximize reliability, minimize size, and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is electrically isolated and hermetically sealed. The use of compressible thermal washers and/or improper mounting torque voids the product warranty.

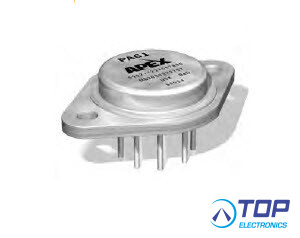

8-PIN TO-3, PACKAGE STYLE CE

FEATURES
• WIDE SUPPLY RANGE — ±10 to ±45V
• HIGH OUTPUT CURRENT — ±10A Peak
• LOW COST — Class “C” output stage
• LOW QUIESCENT CURRENT — 3mA

APPLICATIONS
• PROGRAMMABLE POWER SUPPLY
• MOTOR/SYNCRO DRIVER
• VALVE AND ACTUATOR CONTROL
• DC OR AC POWER REGULATOR
• FIXED FREQUENCY POWER OSCILLATOR
