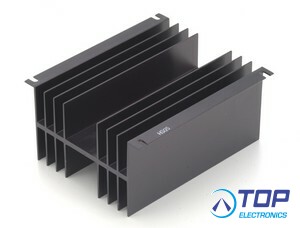

HS05, Heatsink, T03

More information

Stock
Out of stock
Delivery time
if not in stock: 12+ weeks
Part number
HS05
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 100.29 excl VAT
Quantity
Unit price
From 5 pcs€ 97.28
From 25 pcs€ 92.27

Product specifications

HS05 - TO-3 Heatsink

Type ............................................ Board Level
Package Cooled ............................... TO-3
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 4.75" (120.65mm)
Width .......................................... 5.421" (139.70mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 2.630" (66.80mm)
Power Dissipation @ Temperature Rise ... 20W @ 20°C
Thermal Resistance @ Forced Air Flow .... 0.3°C/W @ 500 LFM
Thermal Resistance @ Natural .............. 0.85°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized

- APEX Microtechnology product -
