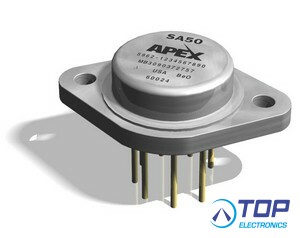

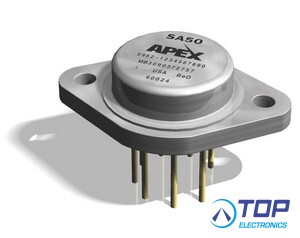

SA50CE, Switching Amplifier 80V, 5A

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
SA50CE
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
3,1 - 10 A
Supply Voltage
0 - 99V
€ 265.25 excl VAT

Product specifications

SA50CE - H-Bridge Motor Driver/Amplifiers, 80V, 5A

The SA50CE is a pulse width modulation amplifier that can continuously supply 5A to the load. The full bridge amplifier can be operated over a wide range of supply voltages. All of the drive/control circuitry for the lowside and high side switches are internal to the hybrid. The PWM circuitry is internal as well, leaving the user to only provide an analog signal for the motor speed and direction, or audio signal for switchmode audio amplification. The SA50CE is packaged in a space efficient isolated 8-pin TO-3 that can be directly connected to a heatsink.

FEATURES
• LOW COST COMPLETE H-BRIDGE
• SELF-CONTAINED SMART LOWSIDE/HIGHSIDE DRIVE CIRCUITRY
• SINGLE ENDED SUPPLY OPERATION
• WIDE SUPPLY RANGE: UP TO 80V
• 5A CONTINUOUS OUTPUT
• HERMETIC SEALED PACKAGE
• HIGH EFFICIENCY: 95% TYPICAL
• FOUR QUADRANT OPERATION, TORQUE CONTROL CAPABILITY
• INTERNAL PWM GENERATION

APPLICATIONS
• BRUSH TYPE MOTOR CONTROL
• CLASS D SWITCHMODE AMPLIFIER
• REACTIVE LOADS
• MAGNETIC COILS (MRI)
• ACTIVE MAGNETIC BEARING
• VIBRATION CANCELLING
