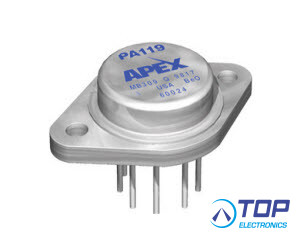

PA119CE, Power Op-Amp, 80V, 4A, 900V/µs

More information

Stock
518 pcs
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
PA119CE
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 266.41 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 5 pcs€258.42
From 25 pcs€245.10

Product specifications

PA119CE - Video Power Operational Amplifier, 80V, 4A, 900V/µs

The PA119 is a high voltage, high current operational amplifier optimized to drive a variety of loads from DC through the video frequency range. Excellent input accuracy is achieved with a dual monolithic FET input transistor which is cascoded by two high voltage transistors to provide outstanding common mode characteristics. All internal current and voltage levels
are referenced to a zener diode biased on by a current source. As a result, the PA119 exhibits superior DC and AC stability over a wide supply and temperature range.

High speed and freedom from second breakdown is assured by a complementary power MOS output stage. For optimum linearity, especially at low levels, the power MOS transistors
are biased in a class A/B mode. Thermal shutoff provides full protection against overheating and limits the heatsink requirements to dissipate the internal power losses under
normal operating conditions. A built-in current limit of 0.5A can be increased with the addition of two external resistors. Transient inductive load kickback protection is provided by two internal clamping diodes. External phase compensation allows the user maximum flexibility in obtaining the optimum slew rate and gain bandwidth product at all gain settings. A
heatsink of proper rating is recommended.

This hybrid circuit utilizes thick film (cermet) resistors, ceramic capacitors, and silicon semiconductor chips to maximize reliability, minimize size, and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. The use of compressible thermal washers and/or improper mounting torque will void the product warranty.

FEATURES:
• VERY FAST SLEW RATE — 900 V/μs
• POWER MOS TECHNOLOGY — 4A peak rating
• LOW INTERNAL LOSSES — 0.75V at 2A
• PROTECTED OUTPUT STAGE — Thermal Shutoff
• WIDE SUPPLY RANGE — ±15V TO ±40V

APPLICATIONS
• VIDEO DISTRIBUTION AND AMPLIFICATION
• HIGH SPEED DEFLECTION CIRCUITS
• POWER TRANSDUCERS UP TO 5 MHz
• MODULATION OF RF POWER STAGES
• POWER LED OR LASER DIODE EXCITATION

- APEX Microtechnology product -
