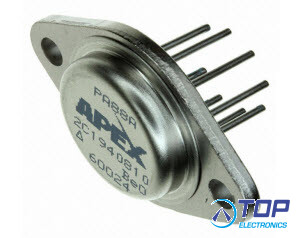

PA88A, Power Op-Amp, 450V, 2mA, "A" Grade

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
PA88A
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
0 - 200 mA
Slew rate
0 - 50 V/µs
Supply Voltage
100 - 500V
€ 214.82 excl VAT
Quantity
Unit price
From 5 pcs€ 208.38
From 25 pcs€ 197.63

Product specifications

PA88A - High Voltage Power Operational Amplifier, 450V, 2mA, "A" Grade

The PA88A is a high voltage, low quiescent current MOSFET operational amplifier designed for output currents up to 100mA. Output voltages can swing up to ±215V with a dual supply and up to +440 volts with a single supply. The safe operating area (SOA) has no second breakdown limitations and can be observed with all types of loads by choosing an appropriate current limiting resistor. High accuracy is achieved with a cascode input circuit configuration. All internal biasing is referenced to a bootstrapped zener-MOSFET current source. As a result, the PA88 features an unprecedented supply range and excellent supply rejection.
The MOSFET output stage is biased on for linear operation. External compensation provides user flexibility. This hybrid circuit utilizes beryllia (BeO) substrates, thick film resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. The use of compressible thermal isolation washers and/or improper mounting torque will void the product warranty.

LOW POWER, PIEZO ELECTRIC POSITIONING
Piezo positioning may be applied to the focusing of segmented mirror systems. The composite mirror may be composed of hundreds of elements, each requiring focusing under computer control. In such complex systems the PA88’s advantage of low quiescent power consumption reduces the costs of power supplies and cooling, while providing the interface between the computer and the high voltage drive to the piezo positioners.

FEATURES
• HIGH VOLTAGE — 450V (±225V)
• LOW QUIESCENT CURRENT — 2mA
• HIGH OUTPUT CURRENT — 100mA
• PROGRAMMABLE CURRENT LIMIT
• LOW BIAS CURRENT — FET Input

APPLICATIONS
• PIEZOELECTRIC POSITIONING
• HIGH VOLTAGE INSTRUMENTATION
• ELECTROSTATIC TRANSDUCERS
• PROGRAMMABLE POWER SUPPLIES UP TO 440V

- APEX Microtechnology product -
