EK09, Evaluation Kit for TO-3 & MO-127 Package

More information

Stock
1 pcs
Delivery time
if not in stock: 4 ~ 8 weeks
Part number
EK09
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 194.83 excl VAT
Contact us Technical support Quotation request

Product specifications

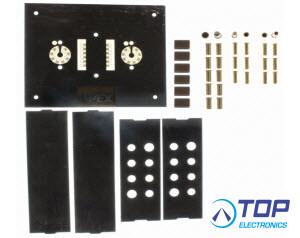

EK09 - Evaluation Kit for TO-3 and MO-127 Packages

** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

This kit provides a solid mechanical platform with good shielding and grounding to breadboard eight pin TO-3 packages or the MO-127 package with 0.060" pins. This kit is not intended as an alternate for kits dedicated to specific amplifiers.

Construction will involve surface mounting and 3D techniques. Holes are provided to mount standard banana and BNC connectors for I/O. See the Apex Precision Power Accessories Information data sheet for a selection of flat-back heatsinks and thermal washers for these packages.
Note that HS11 is compatible with EK09 and all three sockets can be used if desired. If the EK09 is to be used as an MO-127 platform only, HS18 rated at 1° C/W is a cost effective alternative to HS11 if internal power dissipation permits. Lower cost alternatives for two package TO-3 applications are HS02, HS01 and HS09. For single package TO-3 applications the HS13 is also suitable. The six chip capacitors provided can be used as the critical first step in power supply bypass for dual supplies for all three sockets. These capacitors are rated at 200V.

- APEX Microtechnology product -
