PA341CE, Power Op-Amp, 350V, 120mA PEAK, 8-pin

More information

Stock
Out of stock
Delivery time
if not in stock: 4 ~ 6 weeks
Part number
PA341CE
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
0 - 200 mA
Slew rate
0 - 50 V/µs
Supply Voltage
100 - 500V
$ 59.71 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 5 pcs$57.91
From 25 pcs$54.93

Product specifications

PA341CE - High Voltage Power Operational Amplifier, 350V, 120mApk

No Longer Supported For Design In. Please See PA441 series

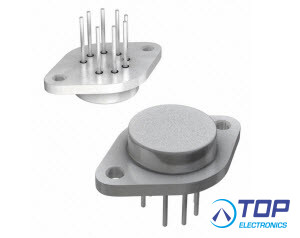

The PA341CE is packaged in a hermetically-sealed 8-pin TO-3 package.
The metal case of the PA341CE is isolated in excess of full supply voltage.

The PA341 is a high voltage monolithic MOSFET operational amplifier which achieves performance features previously found only in hybrid designs while increasing reliability. Inputs are protected from excessive common mode and differential mode voltages. The safe operating area (SOA) has no second breakdown limitation and can be observed with all type loads by choosing an appropriate current limiting resistor. External compensation provides the user flexibility in choosing optimum gain and bandwidth for the application.

- APEX Microtechnology product -
