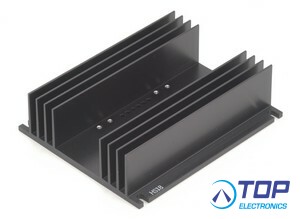

HS18, Heatsink, 12-Pin Power DIP

More information

Stock
Out of stock
Delivery time
if not in stock: 12+ weeks
Part number
HS18
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
€ 120.66 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 5 pcs€117.04
From 25 pcs€111.01

Product specifications

HS18 - Open Frame Heatsink

Type ............................................ Board Level
Package Cooled ............................... PDIP
Attachment Method .......................... Bolt On
Shape .......................................... Rectangular
Length ......................................... 5.421" (139.70mm)
Width .......................................... 4.612" (117.14mm)
Diameter ....................................... -
Height Off Base (Height of Fin) ............ 1.500" (38.10mm)
Power Dissipation @ Temperature Rise ... -
Thermal Resistance @ Forced Air Flow .... -
Thermal Resistance @ Natural .............. 1.0°C/W
Material ........................................ Aluminum
Material Finish .................................. Black Anodized

- APEX Microtechnology product -
