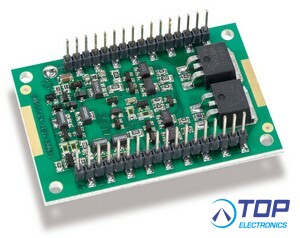

MP108FD, Power Op-Amp, 200V, 10A, 100W High Speed

More information

Stock
Out of stock
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
MP108FD
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
3,1 - 10 A
Slew rate
50 - 350 V/µs
Supply Voltage
100 - 500V
€ 121.44 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 5 pcs€117.80
From 25 pcs€111.72

Product specifications

MP108FD - Power Operational Amplifier, 200V, 10A, 100W High Speed

The MP108 operational amplifier is a surface mount constructed component that provides a cost effective solution in many industrial applications. The MP108 offers outstanding performance that rivals much more expensive hybrid components yet has a footprint of only 4 sq in. The MP108 has many optional features such as four-wire current limit sensing and external compensation. The 300 kHz power bandwidth and 10 amp output of the MP108 makes it a good choice for piezo transducer drive applications.
The MP108 is built on a thermally conductive but electrically insulating substrate that can be mounted to a heat sink.

FEATURES
• LOW COST
• HIGH VOLTAGE - 200 VOLTS
• HIGH OUTPUT CURRENT - 10 AMPS
• 100 WATT DISSIPATION CAPABILITY
• 300kHz POWER BANDWIDTH

APPLICATIONS
• INKJET PRINTER HEAD DRIVE
• PIEZO TRANSDUCER DRIVE
• INDUSTRIAL INSTRUMENTATION
• REFLECTOMETERS
• ULTRA-SOUND TRANSDUCER DRIVE

- APEX Microtechnology product -
