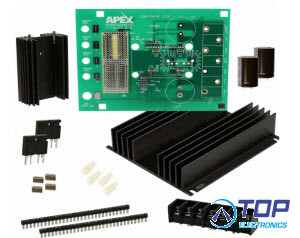

EK57 - Evaluation Kit for MP108FD, MP118FD and MP111FD
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
This easy-to-use kit provides a platform for the evaluation of linear power amplifiers circuits using the MP108FD & MP111FD pin out.
With ample bread boarding areas it is flexible enough to analyze a multitude of standard or proprietary circuit configurations.
Critical connections for power supply bypassing are pre-wired. Components not usually readily available in engineering labs are provided.
External connection to the evaluation kit can be made via the terminal block and terminal pads at the edges of the circuit board.
The terminal pads are suitable for soldering standard banana jacks or direct wiring of wires. Additionally, banana jacks and a BNC connector can be inserted into the holes at the edge of the board and wired to the numbered terminal pads.
- APEX Microtechnology product -
