Product specifications
MS11 - Mating socket, PC Pin Receptacles

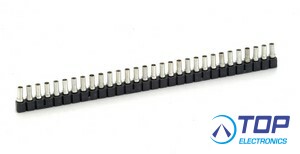

Part number MS11 consists of a carrier strip of 30 cage jacks.
Specifications
Accepts Pin Diameter: .......... 0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Contact Finish: .................. Gold
Contact Finish Thickness: ...... 10µin (0.25µm)
Contact Material: ................ Beryllium Copper
Flange Diameter: ................ 0.076" (1.93mm)
Length - Overall: ................ 0.155" (3.94mm)
Mounting Hole Diameter: ....... 0.059" ~ 0.061" (1.50mm ~ 1.55mm)
Packaging: ........................ Strip of 30
Socket Depth: .................... 0.155" (3.94mm)
Tail Type: ......................... No Tail
Termination: ...................... Solder
- APEX Microtechnology product -
