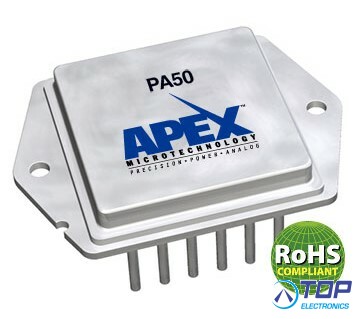

PA50, Power Op-Amp, 100V, 40A, 50V/µs

More information

Stock
7 pcs
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
PA50
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
> 10 A
Slew rate
50 - 350 V/µs
Supply Voltage
100 - 500V
€ 514.19 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 5 pcs€498.76
From 25 pcs€473.05

Product specifications

PA50 - Power Operational Amplifier, 100V, 40A, 50V/µs

The PA50 is a 40A, 100V power operational amplifier featuring 200kHz of power bandwidth and a 50V/µs slew rate. With this combination of high current output, bandwidth, slew rate, and 400 watts of internal power dissipation, the PA50 is targeted for applications in the semi-cap equipment market.

Another exceptional feature of the PA50 is its boost voltage inputs that allow the small signal portion of the amplifier to operate at a higher voltage than the high current output stage. The amplifier is then biased to achieve close linear swings to the supply rails at high currents for extra efficient operation.

The PA50A is the A grade version providing enhance performance in the areas of offset voltage and voltage swing. The PA50 series is a hybrid product design housed in an electrically isolated, hermetically sealed, 12-pin PowerDIP metal package. For continuous operation under load, a heatsink of proper rating is recommended.

FEATURES
• High internal dissipation – 400W
• High output current – 40A continuous, 100A PEAK
• Voltage supply operation - ±3V to ±50V
• High slew rate – 50V/µs
• Optional boost voltage inputs
• High power bandwidth - 200kHz

APPLICATIONS
Imaging and Camera Control
Robotics
Gimbal Positioning
Test Instrument
Valve Control
Magnetic Resonance Imaging
Flight Control Actuator
Wire Bonder

- APEX Microtechnology product -
