EK16, Evaluation Kit PA90,PA91,PA92,PA93,PA98

More information

Stock
1 pcs
Delivery time
if not in stock: 6 ~ 8 weeks
Part number
EK16
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
0 - 200 mA
Slew rate
> 350 V/µs
Supply Voltage
> 500V
€ 154.25 excl VAT
Contact us Technical support Quotation request

Product specifications

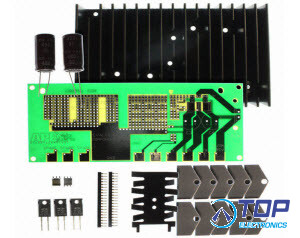

EK16 - Evaluation Kit for the PA90/PA91/PA92/PA93/PA98

** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **

This easy-to-use kit provides a platform for the evaluation of linear power amplifiers circuits using the PA90/PA91/PA92/PA93/PA98 pin-out. With ample breadboarding areas it is flexible enough to analyze a multitude of standard or proprietary circuit configurations. Critical connections for power supply bypassing, compensation and current limiting are pre-red. Components not usually readily available in engineering labs are provided. External connection to the evaluation kit can be made via the terminals at the edge of the circuit board. These terminal pads are suitable for standard banana jacks or direct soldering of wires.

- APEX Microtechnology product -
