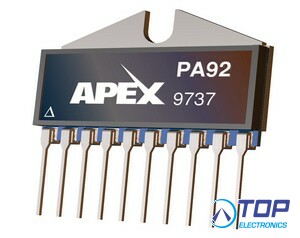

PA92, Power Op-Amp, 400V, 4A

More information

Stock
42 pcs
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
PA92
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
3,1 - 10 A
Slew rate
0 - 50 V/µs
Supply Voltage
100 - 500V
€ 138.49 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 5 pcs€134.34
From 25 pcs€127.41

Product specifications

PA92 - High Voltage Power Operational Amplifier, 400V, 4A

The PA92 is a high voltage, low quiescent current MOSFET operational amplifier designed as a low cost solution for driving continuous output currents up to 4A and pulse currents up to 7A. The safe operating area (SOA) has no second breakdown limitations and can be observed for all type loads by choosing an appropriate current limiting resistor.
The MOSFET output stage is biased AB for linear operation. External compensation provides flexibility in choosing bandwidth and slew rate for the application. Apex Precision Power’s Power SIP package uses a minimum of board space allowing for high density circuit boards. The Power SIP package is electrically isolated.

package option:
90° formed leads is available (package EE). Please contact us.

FEATURES
• HIGH VOLTAGE — 400V (±200V)
• LOW QUIESCENT CURRENT — 10mA
• HIGH OUTPUT CURRENT — 4A
• PROGRAMMABLE CURRENT LIMIT

APPLICATIONS
• PIEZOELECTRIC POSITIONING
• HIGH VOLTAGE INSTRUMENTATION
• ELECTROSTATIC TRANSDUCERS
• PROGRAMMABLE POWER SUPPLIES UP TO 390V

- APEX Microtechnology product -

Related products

TW07

Thermal Washer, PSIP (10 per Pkg)

€ 17.22

EK16

Evaluation Kit PA90,PA91,PA92,PA93,PA98

€ 154.25

HS20

Heatsink, Power SIP

€ 124.80

HS27

Heatsink, PSIP

€ 34.82

MS06

Socket for IC and Transistor, SIP 2-pack

€ 16.62
