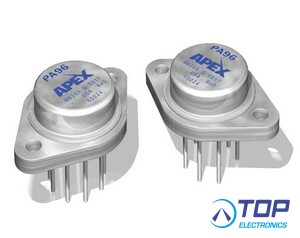

PA96CE, Power Op-Amp, 300V, 1.5 A

More information

Stock
11 pcs
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
PA96CE
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
0,21 - 3 A
Slew rate
50 - 350 V/µs
Supply Voltage
100 - 500V
€ 147.12 excl VAT
Contact us Technical support Quotation request

Product specifications

PA96CE - Power Operational Amplifier, 300V, 1.5 A

The PA96 is a state of the art high voltage, high current operational amplifier designed to drive resistive, capacitive and inductive loads. For optimum linearity, the output stage is biased for class A/B operation. External compensation provides user flexibility in maximizing bandwidth at any gain setting. The safe operating area (SOA) can be observed for all operating conditions by selection of user programmable current limit. For continuous operation under load, a heatsink of proper rating is required.
The hybrid integrated circuit utilizes thick film (cermet) resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is hermetically sealed and electrically isolated. The use of compressible isolation washers voids the warranty.

FEATURES
• HIGH VOLTAGE - 300 VOLTS
• HIGH OUTPUT CURRENT – 1.5 AMPS
• 70 WATT DISSIPATION CAPABILITY
• 175 MHz GAIN BANDWIDTH
• 250 V/µ-SECOND SLEW RATE

APPLICATIONS
• PZT DRIVE
• MAGNETIC DEFLECTION
• PROGRAMMABLE POWER SUPPLIES
• 70V LINE AUDIO to 70W

- APEX Microtechnology product -
