Product specifications

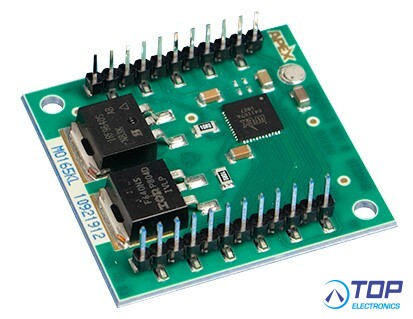

MP165KL 4A/10A, 200V High Density,
The MP165 is a high voltage, MOSFET based operational amplifier with a monolithic amplifier core developed for high density power applications with high output currents or voltages. It is designed for operation up to 200V, and 4A of continuous current.
Separate supplies for the amplifier core and the output stage optimize the overall power dissipation in the devices. The MP165 offers a wide-range (4000:10), temperature compensated current limit.
An additional over-current flag allows for a flexible implementation of system protection, with an output disable function adding another layer of optional protection. Pins for external compensation provides the user flexibility in choosing optimum gain and bandwidth for the application. The VTEMP pin helps in measuring the case temperature of the amplifier.
Features:
Multi-Purpose Power Amplifier
Monolithic MOS Technology for Amplifier Core
High continuous output current – 4A
High PEAK output current – 10A
High supply voltage operation – 200V
Internal power dissipation – 100W
Temperature compensated current limit with over-current flag
Amplifier Disable Feature
- APEX Microtechnology product -
