Product specifications
WuT 55624

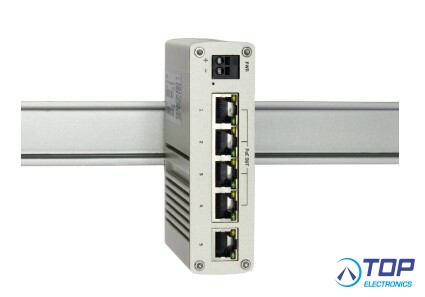

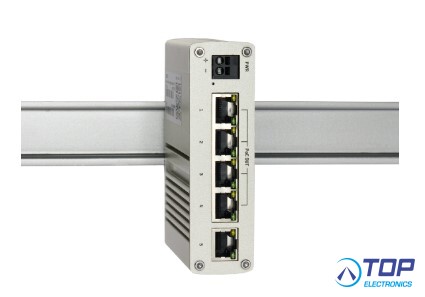

Gigabit networking in the control cabinet with 4x PoE+
The compact Industry Switch connects up to four network components in the control cabinet with a data rate of up to one Gigabit data rate. The switch is powered through a terminal plug with 9-30V and provides up to 60W via Power over Ethernet. It includes 5 Ethernet ports 10/100/1000Mbps
Interfaces:
5x Ethernet 10/100/1000BaseT
4 of which are PoE+ 802.3af terminals, max. 30W per port
Management and connectivity:
Industrial grade with Rugged aluminum housing for DIN rail mounting
Operating temperature range -40 - 75°C
Ingress protection IP30
Power supply:
External power
Industrial DC clamping terminal 9-30VDC
Standards & more:
Conforms to standards both in office and industrial environments:
High noise resistance per EN 61000-6-2
Low noise emission per EN 55032:2015 + A11:2020 + A1:2020 EN 55035:2017 + A11:2020
5 year guarantee
Connections and displays:
Network: 5x 10/100/1000BT autosensing
Auto MDI/MDI-X Auto Crossover Support
IEEE 802.3 series standards: 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Supply voltage: Plug-in terminal: DC 9V...30V (+/-10%)
Current consumption: @9-30VDC <2.2W (without connected PoE devices)
No-load 0.64W / max.: 2.31W / PoE max: 62.3W
PoE output:PoE Ports: 1-4
PoE standards: 802.3af and 802.3at Alternative B
PoE max. power per port: 30W
PoE max. power budget: 60W
Housing and other data:
Housing: Metal housing for DIN rail mount 95mm x 32mm x 115mm (L x W x H)
Enclosure rating:IP30
Weight:approx. 400g
Ambient temperature: Operating: -40..+75°C
Permissible relative humidity: 10..90% relative humidity (non-condensing)
Scope of delivery:Ethernet Switch Gigabit Industry PoE
**Please order power supplies as separate accessories**
- Wiesemann & Theis product -
