Product specifications
WuT 11079

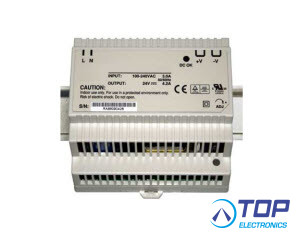

Power supply 24V / 100W for DIN rail mounting
92 Watt DIN rail power supply 4 TE wide
Universal LPS power supply with wide range input 100...240V
W&T Interfaces or Com-Servers are frequently used with a 24V power supply in large numbers at a central location. In such cases a common supply for the interfaces makes the application significantly clearer than would be the case when powering the devices with individual dedicated power supplies.
If there is no large 24V power supply in the installation, this problem can be solved elegantly and cost-effectively using the Model 11077 100W DIN rail power supply, which is capable of powering multiple interfaces or Com-Servers.
The power supply can of course also be used where in addition to the 24V supply for the W&T Interface you also need power for the rest of the installation. In this case you simply need to ensure that the power consumed does not exceed the rated power of the DIN rail power supply.
Thanks to the generous operating temperature range, the DIN rail mount power supply is also ideal for applications where the standard plug-in power supply provided with the Interfaces cannot be used due to the expected high ambient temperatures.
Product properties:
Compact 100 Watt power supply for DIN rail mounting
Flexible in application:
Generous 100...240V input range
CE Marking and UL Listed
High-efficiency: typ. 89%
Large operating temperature range: -20..+60 °C
Compact DIN rail housing: 100 x 93 x 56 mm
Standards-conformal for both office and industrial environments:
Increased noise immunity for industrial areas
Stricter noise emission for residential and commercial areas
- Wiesemann & Theis product -
