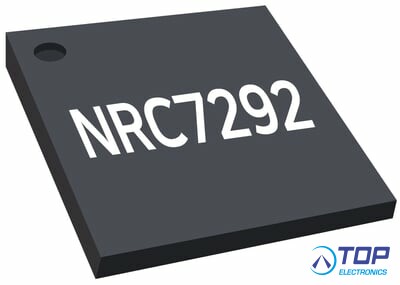

NRC7292
World's First Wi-Fi HaLow + MCU SoC
The NRC7292 is the industry’s first system on a chip (SoC) that is compliant with the IEEE 802.11ah Wi-Fi HaLow standard. Wi-Fi HaLow is an optimized Wi-Fi solution for Internet of Things (IoT) devices. Operating in the Sub 1GHz license-exempt band, it offers a much greater range and material penetration when compared to 2.4GHz and 5GHz technologies. Configurable 1/2/4MHz channel widths with optional short guard interval (SGI) yield 150 Kbps to 15 Mbps PHY throughput which can support low data rate sensors up to high data rate surveillance camera applications. The protocol’s power-saving mechanisms greatly reduce power consumption and increase battery life.
The NRC7292 is a self-contained IEEE 802.11ah Wi-Fi HaLow SoCs that includes application processing and networking capabilities with a fully integrated radio transceiver. The NRC7292 is the ideal solution to add Wi-Fi connectivity to IoT products. It minimizes the PCB size, requires minimal external circuitries, and enables fast time-to-market.
The RF transceiver is a complete radio front-end optimized for the Sub 1GHz band and it has fully integrated pre-power amplifiers as well as the capability to support various commercial external FEM devices. With the dual-embedded ARM Cortex-M0 and Cortex-M3 processor, NRC7292 can be used either as a standalone device or a slave to a host processor via the serial peripheral interface (SPI) or universal asynchronous receiver transmitter (UART) interface. In addition, it can support both Station and Access Point roles.
Key Features:
- IEEE 802.11ah Wi-Fi HaLow Compliant SoC
- Fully Integrated on-chip 11ah modem, RF transceiver, single Cortex processors, and memory
- Support for Hosted, Hostless, and Standalone operation
- Supports 1/2/4 MHz bandwidth
- Up to 15 Mbps data rate
- Low-power operation modes: Legacy - WMM-PS - TWT
- AES-CCMP security
- Dedicated SPI and UART interface for host
- Various peripheral interfaces for sensor device
- Manufacturing tools for configuration and test
- Diagnostic test tools for indoor and outdoor test
- Software development kit and sample applications
Applications:
- Home Automation
- Healthcare
- Industrial
- Automation
- Safety and Security
- Smart Grid
Specifications:
- CPU: ARM Cortex-M3 for Wi-Fi and application
- Memory: 32KB Boot ROM for M0 / 32KB Boot ROM for M3 / 752KB System SRAM / XIP with cache (2 ways, 32KB)
- Communication Peripherals: GPIO X 54 / SPI X 45 / UART X 4 / I2C X 4 / 9-bit ADC X 4
- RF Transceiver: Single-ended RF ports / Frequency band: 750 to 950MHz / Linear TX output power: 0dBm / TX gain range: 30dB / RX noise figure: 4dB / Max. input level: -10dBm / 10bits ADC and DAC
NRC7292 Evaluation / Development kit available:
- NRC7394 EVK provides a comprehensive evaluation kit for entry of IoT application development, including an HDK board with full chip functionality exposed, complete hardware development documentation, and a software development kit.
(Please contact us if you would like to receive more information about this kit)
- NEWRACOM product -
