Product specifications
WHM500A - Wi-Fi HaLow (NRC7394) Module with PA for EU Market
Communication Module connecting the IoT era Connectivity Module
The WHM500A uses the new Wi-Fi standard IEEE 802.11ah, which uses the Sub 1 GHz license-exempt band. It has long range, low power and high permeability and is optimized for IoT modules.
The WHM500A includes a RF switch and an internal PA in the SoC to increase transmit power up to 17 dBm.
The WHM500A is a long range, high-performance module for wireless communication. The module is solder-able like a SMD component and can easily be mounted on a simple carrier board with a minimum of required external connections.

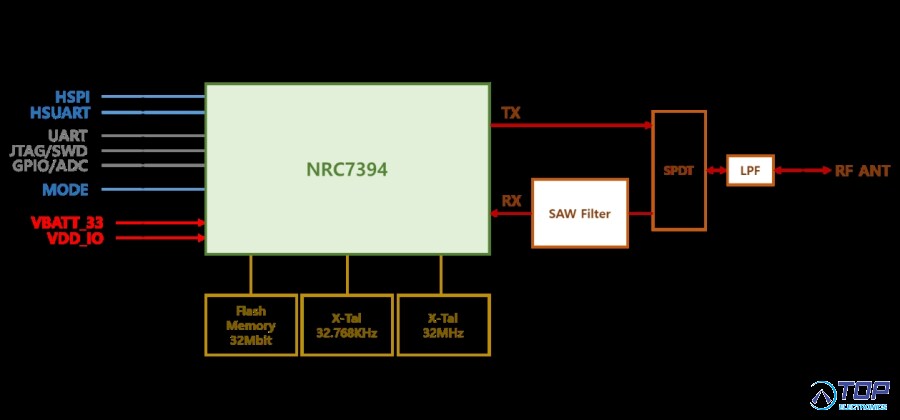

It includes all necessary passive components for wireless communication as depicted in the following figure.
Key Features:
- ARM Cortex-M3 for IEEE 802.11ah WLAN
- EU Low Power Module(+14dBm)
- Interface Type : SMD PAD
- -107 dBm minimum receive sensitivity(MCS10)
- 14 X 17.5 X 2.5mm
- 30MHz clock frequencies for processor
- Single-stream up to 15Mbps data rate
- Modulation : OFDM with BPSK, QPSK, 16QAM, 64QAM-
Applications:
- Smart home and home security
- Smart factory and factory automation
- Smart city and public transportation management
- Smart grid/metering
- Surveillance camera and remote monitoring of wildlife
- Wireless sensor network
- Health care
- Electric vehicle and charging
- Commercial drone
- Wireless Alarm and Security Systems
- NEWRACOM product -
