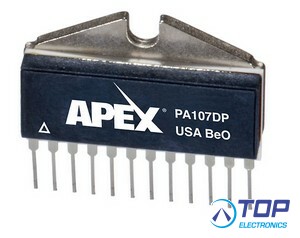

PA107DP, Power Op-Amp, 3.000V/µs, Wideband

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
PA107DP
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
0,21 - 3 A
Slew rate
> 350 V/µs
Supply Voltage
100 - 500V
€ 303.12 excl VAT

Product specifications

PA107DP - Power Operational Amplifier, Wideband

The PA107DP is a state of the art wideband high power operational amplifier designed to drive resistive, capacitive or inductive loads. For optimum linearity the output stage is biased for class A/B operation. Feed forward technology is used to obtain wide bandwidth and excellent DC performance, but constricts use to inverting mode only.

External compensation allows the user to obtain both high gain and wide bandwidth. Use of a heatsink is required to realize the SOA.

This hybrid integrated circuit uses thick film resistors, ceramic capacitors, and semiconductors to maximize reliability, minimize size, and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 12 pin SIP package occupies only 2 square inches. The use of compressible insulation washers voids the warranty.

FEATURES
• High Voltage 180 Vp-p
• High Slew Rate 2500 V/μs Minimum with A CL = 20
• High Gain Bandwidth 180 MHz
• High Output Current ±1.5 A Steady State Within SOA
• High Peak Output Current ±5 A

APPLICATIONS
• Piezo Drive
• CRT Beam Intensity Control
• ATE Applications
• Line Driver

- APEX Microtechnology product -

Related products

TW07

Thermal Washer, PSIP (10 per Pkg)

€ 17.25

EK71

Evaluation Kit for PA107DP

€ 180.49

HS20

Heatsink, Power SIP

€ 119.76

MS06

Socket for IC and Transistor, SIP 2-pack

€ 12.72
