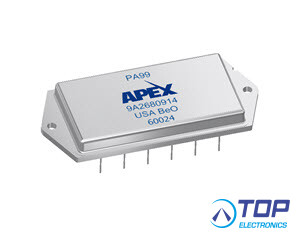

PA99, Power Op-Amp, 2500V, 50mA PEAK

More information

Stock
Out of stock
Delivery time
if not in stock: 12+ weeks
Part number
PA99
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
0 - 200 mA
Slew rate
0 - 50 V/µs
Supply Voltage
> 500V
€ 892.31 excl VAT
Contact us Technical support Quotation request
Quantity
Unit price
From 5 pcs€865.54
From 25 pcs€820.93

Product specifications

PA99 - 2500V, 50mA Power Operational Amplifier in Space-Saving Power-DIP Package

SPECS:
Wide supply operation – ±100V to ±1250V
Signal output voltage – up to 2400Vp-p
Programmable current limit
Output current – 50mA continuous
Temperature sensing

The PA99 is a hybrid high voltage power operational amplifier designed to target the expanded voltage supply demands of power supply and ATE applications. The PA99 is capable of operating on a maximum voltage supply of 2500V and provides output voltages beyond 2400Vpp. In terms of output current delivery, the PA99 can provide 50mA of continuous current, but the SOA must be managed for thermal conditions. Under typical operating conditions, the PA99 can achieve slew rates of +25V/µs. The PA99 is packaged in a 12-pin hermetically sealed PowerDIP package with a footprint measuring just 1.6” x 3.7”. The PowerDIP package enables efficient cooling of the amplifier when operating in conditions where power loss within the device is significant.

APLLICATIONS:
High Voltage Cable Testing
High Voltage Component Testing
Electrostatic Deflection
Electrophoresis
Electrospinning
Electrophotography
High Voltage DC Supply
Piezo Drivers

- APEX Microtechnology product -
