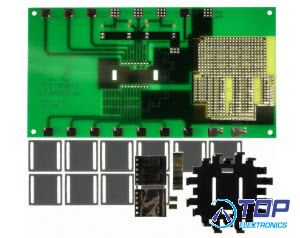

EK07 - Evaluation Kit for SA09
** This EK does NOT contain the actual amplifier device, so that needs to be ordered separately **
This easy-to-use kit provides a platform for the evaluation of PWM amplifier circuits using the SA09 pinout.
With ample breadboarding areas it is flexible enough to analyze a multitude of standard or proprietary circuit configurations.
Critical connections for power supply bypassing, compensation and current limiting are pre-wired.
Components not usually readily available in engineering labs are provided.
External connection to the evaluation kit can be made via the terminals at the edge of the circuit board. These terminal pads are suitable for standard banana jacks or direct soldering of wires.
- APEX Microtechnology product -
