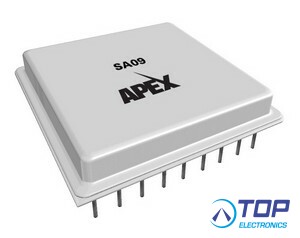

SA09, Switching Amplifier, 40V, 5A

More information

Stock
Out of stock
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
SA09
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
3,1 - 10 A
Supply Voltage
0 - 99V
€ 564.17 excl VAT
Contact us Technical support Quotation request

Product specifications

SA09 - Pulse Width Modulation Amplifiers, 40V, 5A

The SA09 amplifier is a 40 volt, 500kHz PWM amplifier. The full bridge output circuit provides 5 amps of continuous drive current for applications as diverse as high fidelity audio and brush type motors. Clock output and input pins can be used for synchronization with other amplifiers or an externally generated clock.
Direct access to the pwm input is provided for connection to digital motion control circuits. Protection circuits guard against thermal overloads as well as shorts to supply or ground. The current limit is programmable with one or two external resistors depending on the application. A shutdown input disables all output bridge drivers. The 18 pin steel package is hermetically sealed.

FEATURES
- 500kHz SWITCHING
- FULL BRIDGE OUTPUT 5-40V (80V P-P)
- 5A OUTPUT
- 1 IN2 FOOTPRINT
- FAULT PROTECTION
- SHUTDOWN CONTROL
- SYNCHRONIZABLE CLOCK
- HERMETIC PACKAGE

APPLICATIONS
- HIGH FIDELITY AUDIO AMPLIFIER
- BRUSH TYPE MOTOR CONTROL
- VIBRATION CANCELLING AMPLIFIER

- APEX Microtechnology product -

Related products

TW09

Thermal Washer, DIP (10 per Pkg)

€ 29.79

EK07

Evaluation Kit for SA09

€ 144.51
