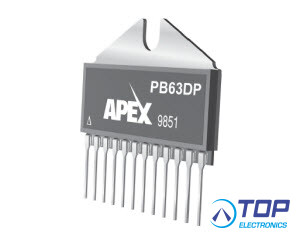

PB63DP, Dual Power Booster, 75V, 2A, 1000 V/µs

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
PB63DP
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
0,21 - 3 A
Slew rate
> 350 V/µs
Supply Voltage
100 - 500V
€ 286.65 excl VAT
Quantity
Unit price
From 5 pcs€ 278.05
From 25 pcs€ 263.72

Product specifications

PB63DP - Dual Power Booster Amplifier, 150V, 2A, 1000 V/µs

The PB63 is a dual high voltage, high current booster amplifier designed to provide voltage and current gain for a small signal, general purpose op amp. Including the power booster within the feedback loop of the
driver amplifier results in a composite amplifier with the accuracy of the driver and the extended output current capability of the booster.
The output stage utilizes complementary MOSFETs, providing symmetrical output impedance and eliminating second breakdown limitations imposed by Bipolar Junction Transistors. Although the booster can be configured quite simply, enormous flexibility is provided through the choice of driver amplifier, current limit and supply voltage.
This hybrid circuit utilizes a beryllia (BeO) substrate, thick film resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum
wires provide reliable interconnections at all operating temperatures. The PB63 is packaged in Apex Microtechnology’s 12-pin power SIP. The case is electrically isolated.

FEATURES
• Wide Supply Range – ±20 V to ±75 V
• High Output Current – Up to 2 A Continuous
• Programmable Gain
• High Slew Rate – 1000 V/µs Typical
• Programmable Output Current Limit
• High Power Bandwidth – 1 MHz Typical
• Low Quiescent Current – 37 mA Typical
(Total, Both Channels)

APPLICATIONS
• LED Test Equipment
• LCD Test Equipment
• Semiconductor Test Equipment
• High Voltage Instrumentation
• Electrostatic Transducers and Deflection
• Piezoelectric Positioning and Actuation
• Programmable Power Supplies
