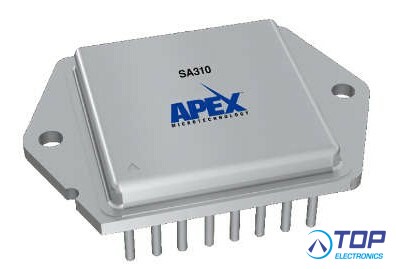

SA310KR, 650V, >400kHz SiC 3ph H-bridge module

More information

Stock
5 pcs
Delivery time
if not in stock: 8 ~ 12 weeks
Part number
SA310KR
Manufacturer / supplier
Apex Microtechnology
Documents
View Documents
Datasheet
View datasheet
User Guide
View User Guide
Output current
> 10 A
Supply Voltage
> 500V
Specification 3
Switching frequency >400kHz
€ 609.99 excl VAT
Contact us Technical support Quotation request

Product specifications

SA310KR - 650V, >400 kHz Silicon Carbide 3phase H-Bridge Module

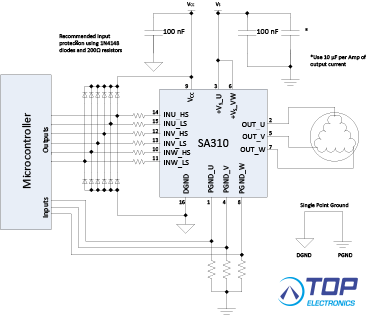

The SA310 is a fully integrated three-phase driver designed primarily to drive Brushless DC (BLDC) and Permanent Magnet Synchronous (PMSM) motors or DC/AC converters.

The module uses Silicon Carbide MOSFET technology to improve efficiency over other devices in its class.
Three independent half-bridges provide up to 80A peak output current under direct microcontroller or DSC control.
SA310 is built on a thermally conductive, but electrically isolated substrate to provide the most versatility and ease in heatsinking.

The amplifier protection features include Under-voltage lockout (UVLO) function and active Miller clamping to reduce switching noise and improve reliability.
Also included in the module are Silicon Carbide Schottky Barrier free-wheeling diodes to protect the body diode of each MOSFET.
No external output protection diodes are required. The SA310's integrated gate drivers provide transformer isolation between the inputs and high-voltage outputs.

- APEX Microtechnology product -
