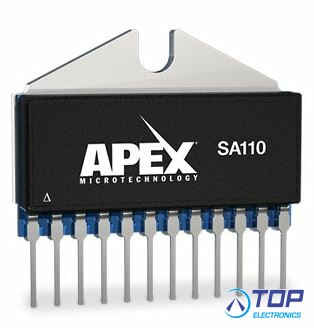

SA110DP, 400 V >250 kHz SiC Half H-bridge module

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
SA110DP
Manufacturer / supplier
Apex Microtechnology
Documents
View Documents
Datasheet
View datasheet
Output current
> 10 A
Supply Voltage
100 - 500V
€ 201.25 excl VAT
Quantity
Unit price
From 5 pcs€ 195.21
From 25 pcs€ 185.15

Product specifications

SA110 - 400 V, 250 kHz Silicon Carbide Half H-Bridge Module

The SA110 is Apex Microtechnology’s first high current, high voltage half H-bridge to utilize Silicon Carbide (SiC) MOSFETs with integrated gate drive.
SiC MOSFETs provide reduced switching losses, lower conduction losses, and a low dependency of RDS(on) over temperature. The SA110 features integrated gate drive control, a very high 400 kHz MAX switching frequency, and 28 A of continuous output current in the A grade variant.

This hybrid is offered in a 12-pin PSIP package to provide a compact footprint along with protection features. With integration of the gate drive, switching speeds are greatly improved as parasitic impacts are reduced and easier to control.
SA110 is ideal for applications where focus is on over temperature performance, high efficiency, and compact design.

FEATURES
- 20A continuous output current
- 28A for A-grade
- 250kHz switching frequency
- 400V supply voltage
- integrated gate drive with under-voltage lock-out and active Miller clamping
- 12-pin PSIP package

APPLICATIONS
- DC/AC or DC/DC conveters
- Motor control

- APEX Microtechnology product -
