Product specifications

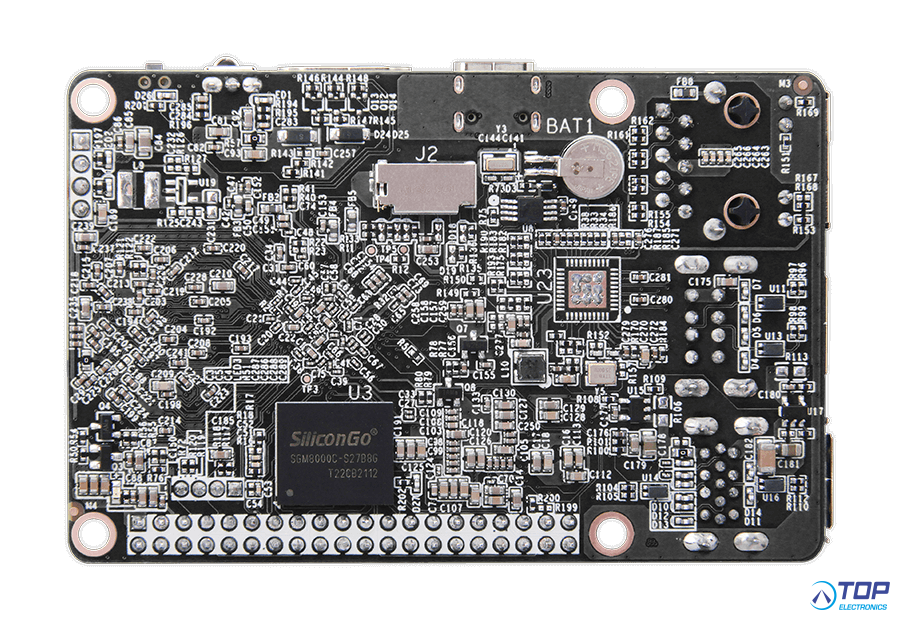

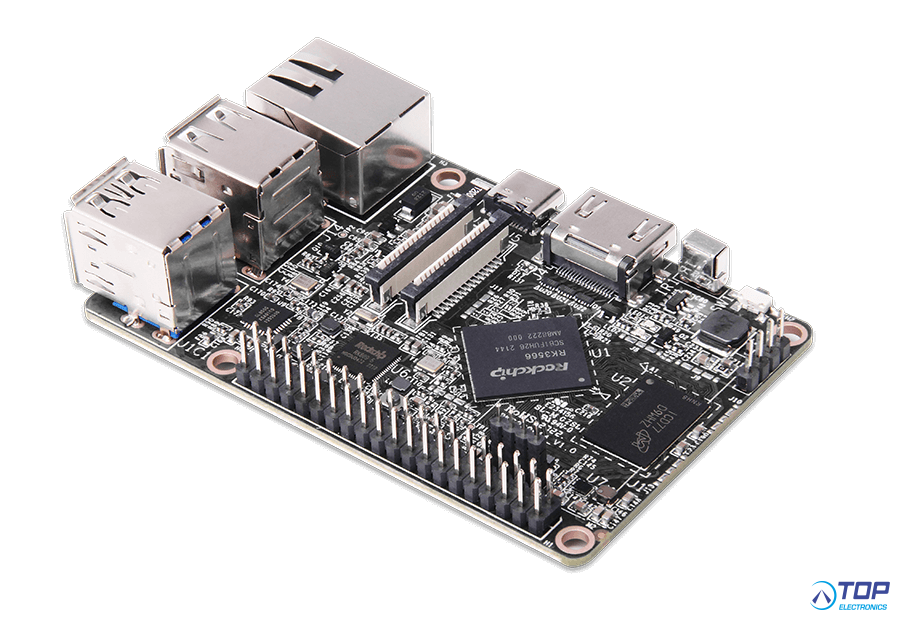

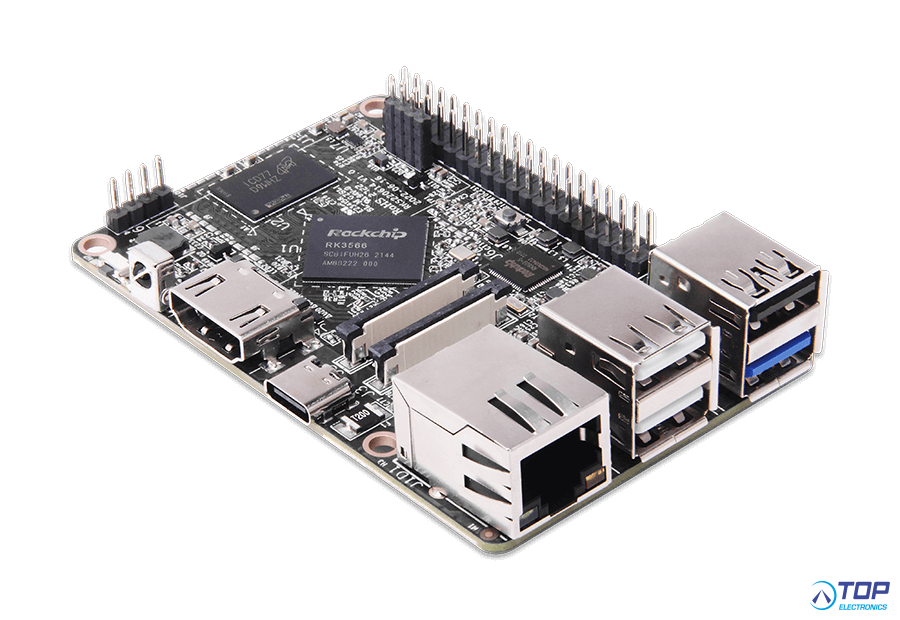

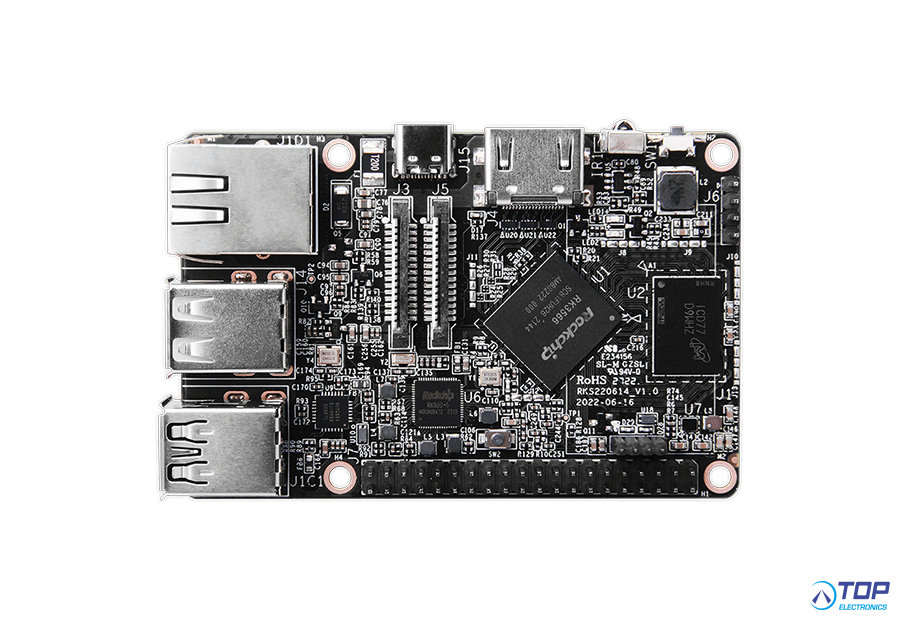

The XPI-3566 is a microcomputer product of Raspberry Pi form factor developed by Geniatech based on the Rock-Chip 3566 platform.
According to the definition of Raspberry Pi, this is suitable for the field of programming education for teenagers.
This product’s key features including a Rock-Chip high-performance and low power quad-core application 64-bit quad-core processor, HDMI display support at resolutions up to 4KP60, hardware video decode at up to 4KP60,hardware video encode at up to 1080P60, up to 8GB of RAM, dual-band 2.4/5.0 GHz wireless LAN, Bluetooth 4.0, Gigabit Ethernet, USB 3.0 and USB 2.0.
Below is the detailed specification:
- 85mm*56mm, Only the size of a bank card
- Rockchip RK3566 with Quad-core Cortex-A55 up to 1.8GHz
- 2G RAM, 16GB eMMc flash
- USB HOST 3.0 * 1, USB Host 2.0*2, USB OTG 2.0*1, 1*HDMI Out, 1*Type-C, 1*UART, 1* Extension GPIO interface
- Support Android 11.0 or Linux (Debian 10/Raspbian OS emulation)
- Wi-Fi and 1000M LAN interface
- Micro SD card (TF card: Max64G)
