Product specifications

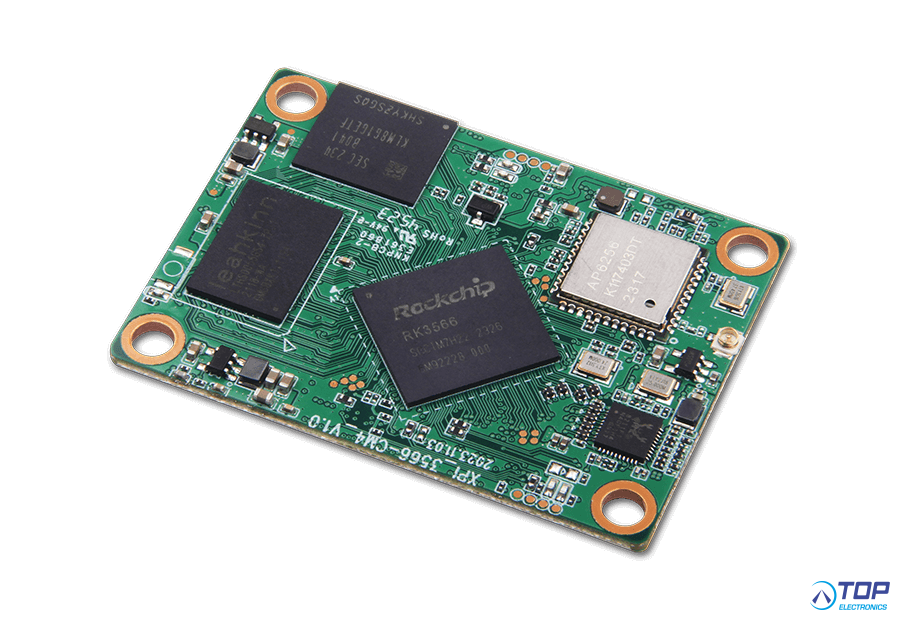

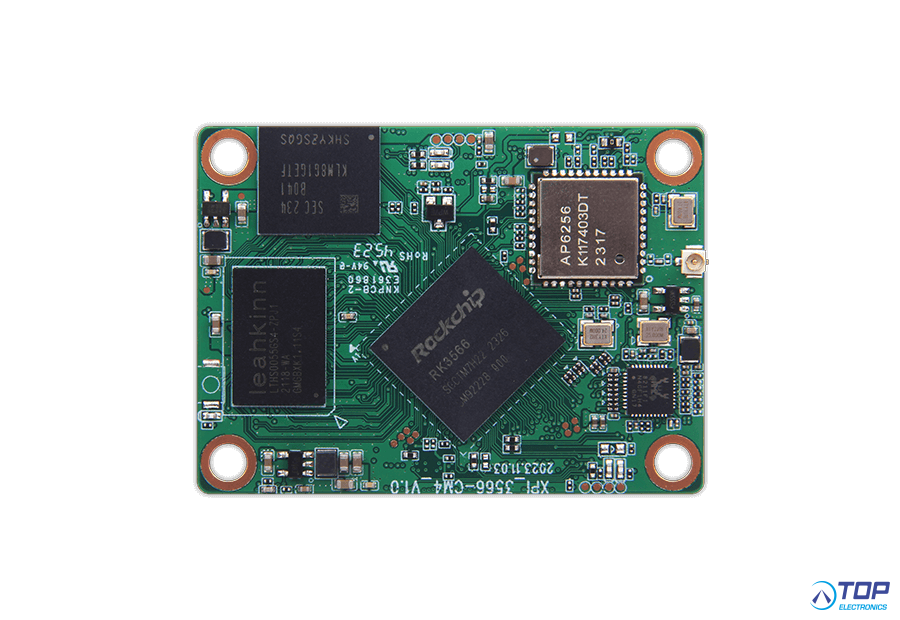

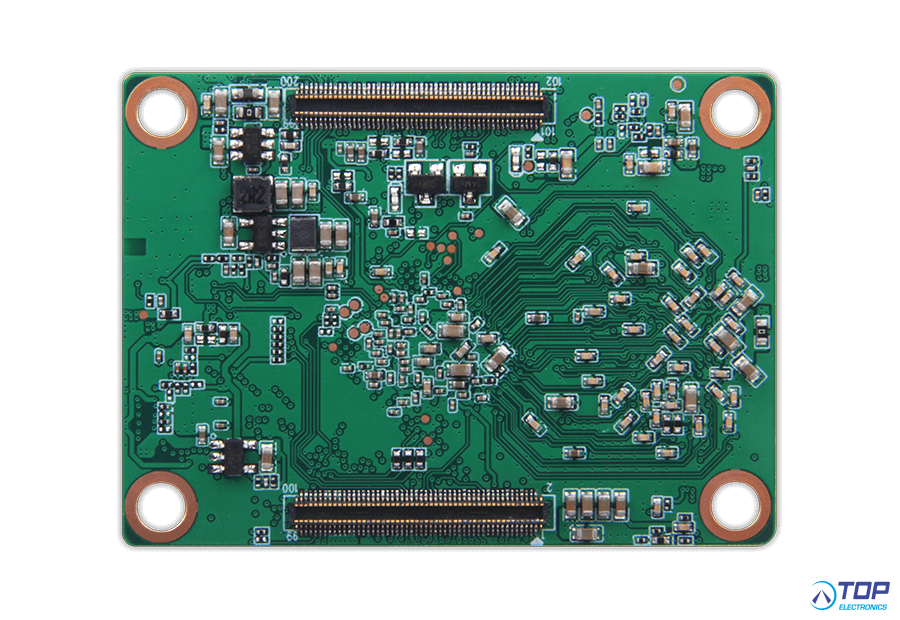

The XPI-3566-CM4 is designed based on the Rockchip RK3566 platform and is fully compatible with the CM4 carrier board produced by Raspberry Pi, which is suitable for integration into smart home applications, youth programming education and IoT products.
This product’s key features includinga
Rock-ChipRK3566high-performance and low power 64-bit quad-core processor,
HDMI display support at resolutions up to 4KP60,
hardware video decode at up to 4KP60,
hardware video encode at up to 1080P60,
1GB LPDDR（up to 8GB）,
8GB EMMC(up to 32GB),
Type-Cfor USB OTG,
Bluetooth 5.0,
dual-band 2.4/5 GHz wireless LAN.
