Product specifications

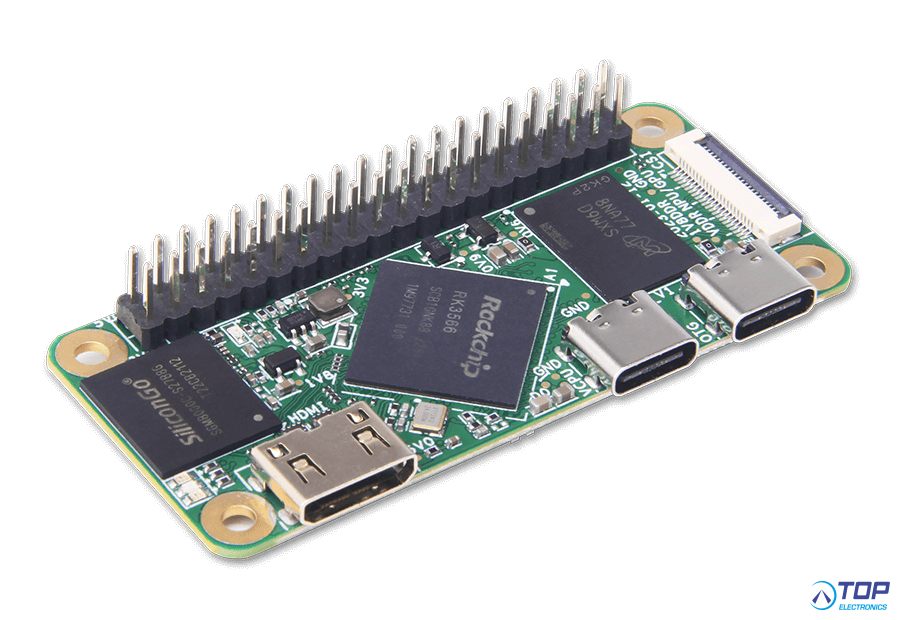

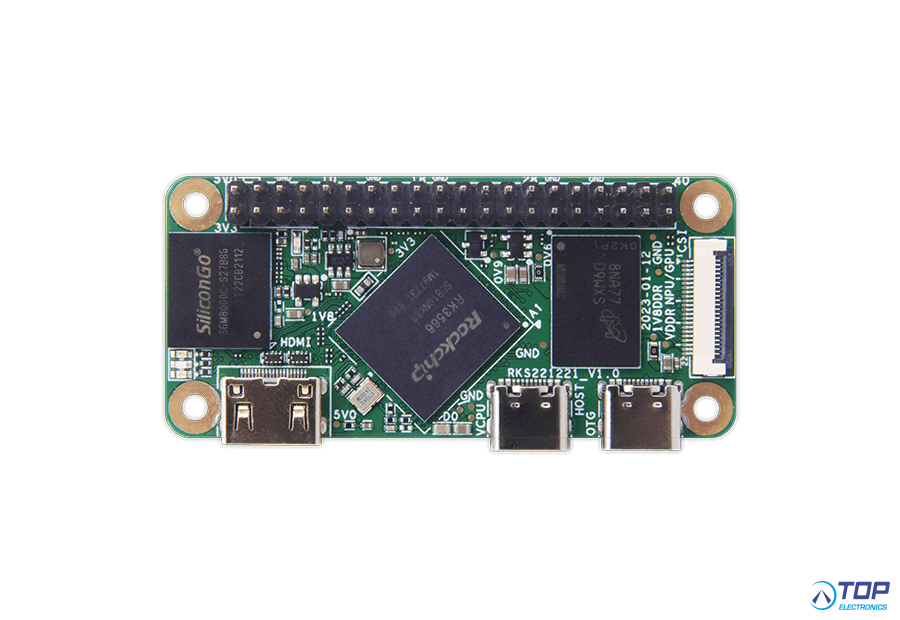

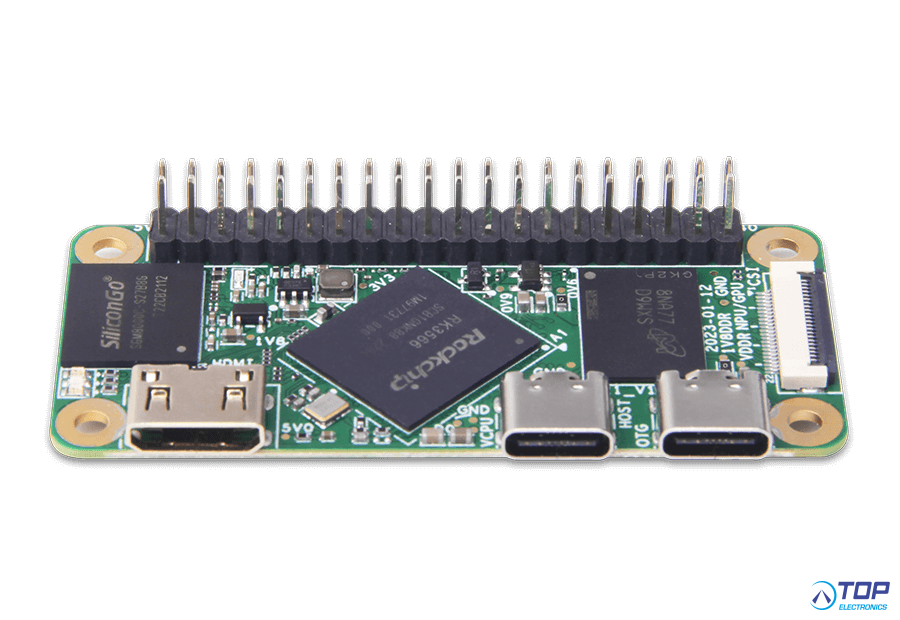

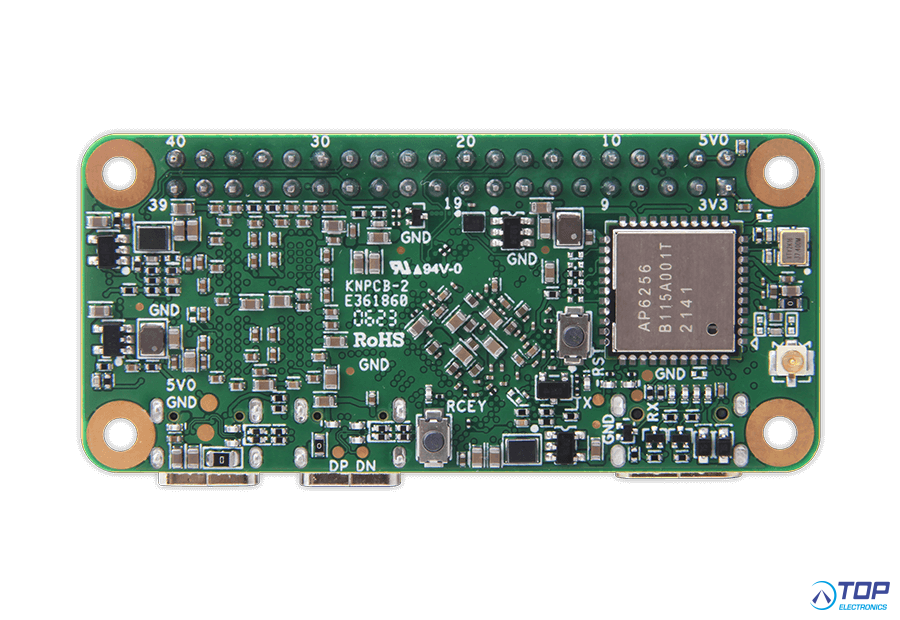

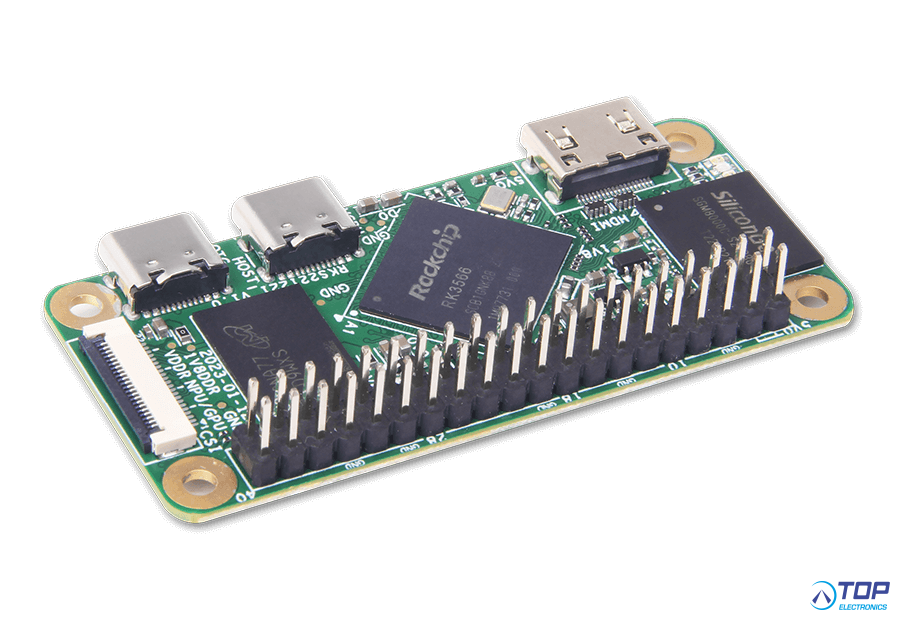

The XPI-3566-ZERO is a microcomputer product developed by Geniatech based on the Rock-Chip 3566 platform, and XPI-3566-ZERO has the same form factor of Raspberry PiZero & Zero2 W.
According to the definition of Raspberry Pi Zero, this is suitable for the field of smart home applications, programming education for teenagers and other IoT projects.
This product’s key features including a Rock-Chip RK3566 high-performance and low power 64-bit quad-core processor, HDMI display support at resolutions up to 4KP60, hardware video decode at up to 4KP60, hardware video encode at up to 1080P60, 512MB LPDDR, up to 8GB, Type-C for USB OTG, Bluetooth 5.0, dual-band 2.4/5 GHz wireless LAN.
Below is the detailed specification
- 65mm*30mm, less thanthehalfsize of a bank card
- Rockchip RK3566 with Quad-core Cortex-A55 up to 1.8GHz
- 512MB LPDDRRAM(up to8GB),8GB eMMc flash ( up to 128GB)
- 1 *Type-Cfor USB Host with 5VDC input,1 *Type-Cfor USB OTG,1*MIPI-CSI, 1* Extension GPIO interface
- Support Linux (Debian11) or Raspberry PI OS.
- 2.4GHz&5GHz Wi-Fi WLAN & Blue tooth 5.0
