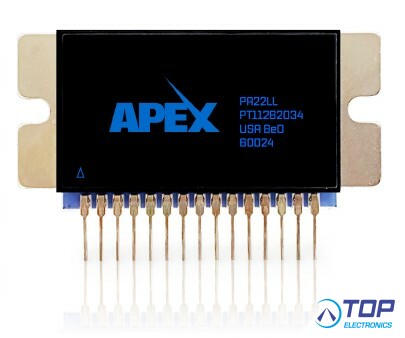

PA22LL, 250V, 13.6A Power Amplifier

More information

Stock
In stock
Delivery time
please contact us for more information
Part number
PA22LL
Manufacturer / supplier
Apex Microtechnology
Datasheet
View datasheet
Output current
> 10 A
Slew rate
0 - 50 V/µs
Supply Voltage
100 - 500V
€ 531.74 excl VAT
Quantity
Unit price
From 5 pcs€ 515.79
From 25 pcs€ 489.20

Product specifications

PA22LL - 250V, 13.6A Power Amplifier with Exceptional Power Dissipation

The PA22 establishes a new benchmark in power amplifier performance for a variety of applications where high speed and short-term power dissipation is a must.

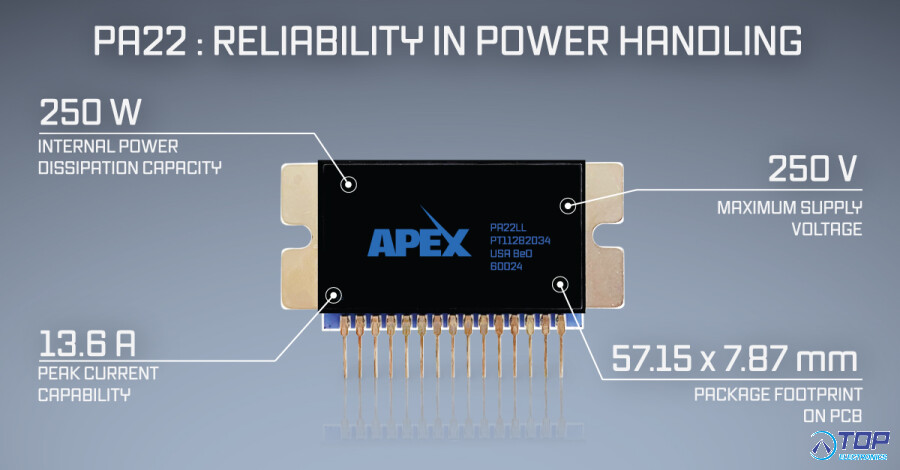

The PA22 provides a peak current capability of 13.6 amps, can handle a maximum supply voltage of 250 volts, and offers an internal power dissipation of 250 watts. Its novel design allows for easy and reliable mechanical mounting and thermal interfacing with industry standard heat sink techniques, also enabling strong performance even when socketed.

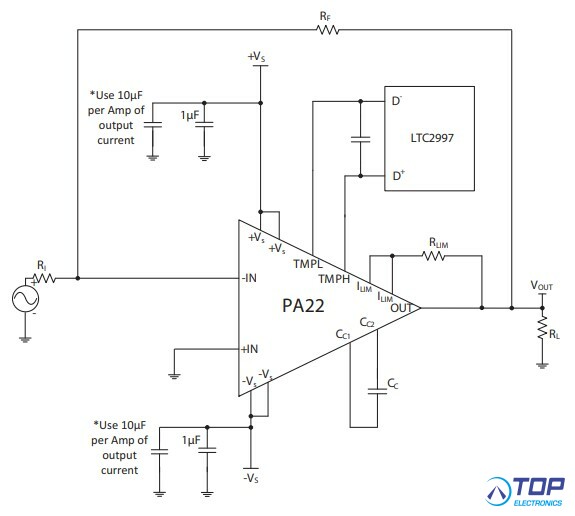

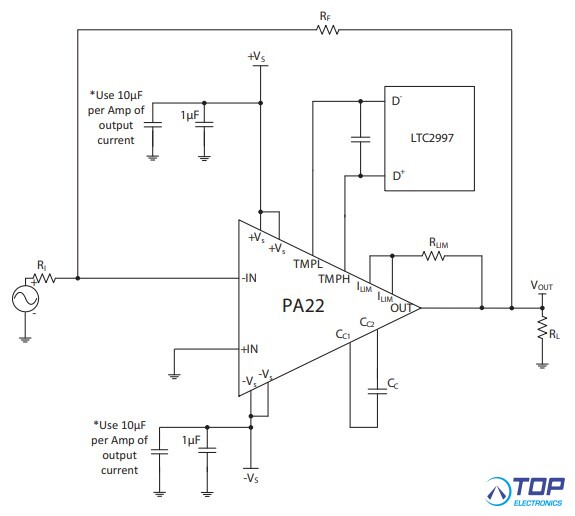

This amplifier is equipped with output temperature sensing and current limit, providing users further control in its operation and system integration.

FEATURES
- Up to ±110 V Power Supply
- 12 A Continuous Output Current, Typical
- 250 W Continuous Power Dissipation at TC= 25 oC
- 4 MHz Gain Bandwidth Producty Mode

APPLICATIONS
- Programmable Voltage or Current Sources
- Piezo Electric Positioning
- Deformable Mirror Focus
- Electrostatic Transducers

- APEX Microtechnology product -

Related products

HS32

Heatsink, Power SIP Heatsink

€ 43.67

TW15

Thermal Washer, PSIP (10 per Pkg)

€ 49.23

EK79

Evaluation Kit for PA22LL

€ 225.21
