REA016080AWPP3N00000 - 1.54-inch 160x80 COG Graphic OLED Display with PCB (SSD1320)

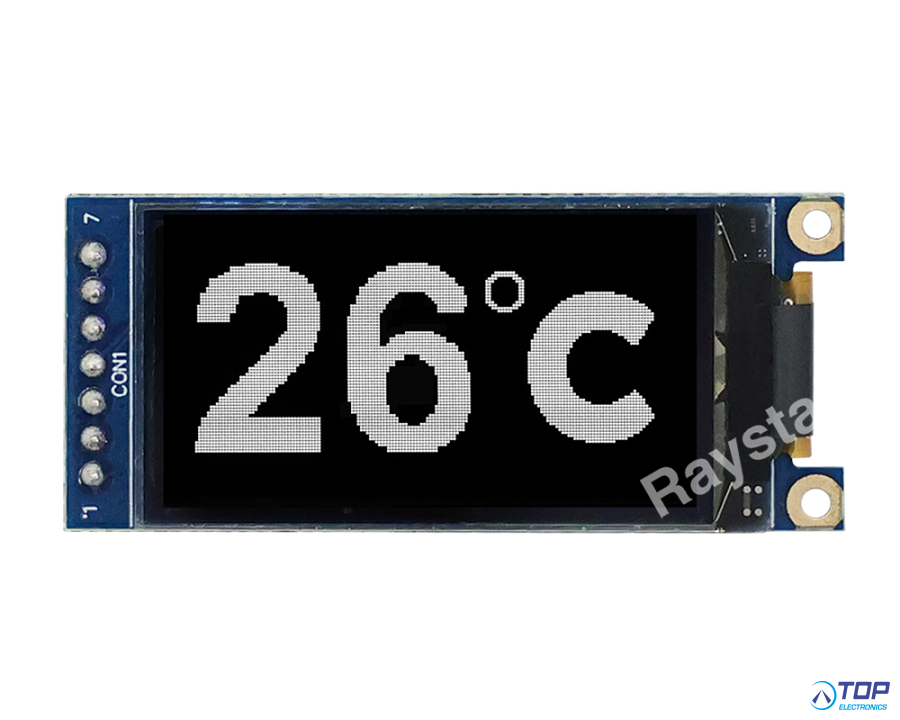

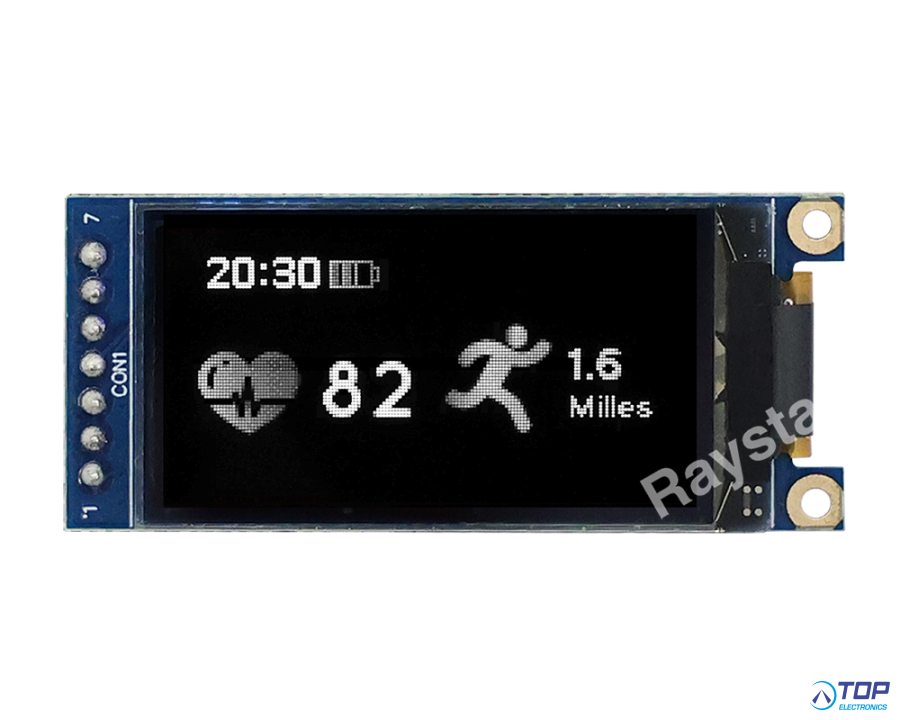

The REA016080AWPP3N00000 is a 1.54-inch COG+PCB graphic OLED module.
With a resolution of 160x80 and an integrated SSD1320 IC, it supports 4-wire SPI interface and 4-bit grayscale.
The module dimension is 43.5×22.5×5.96 mm and designed with screw holes for easy installation, this module is perfect for applications in smart home appliances, gaming devices, and network products.
It features an impressive contrast ratio of 10,000:1 and white display colour. It can operate within a temperature range of -40? to +80?, with a storage temperature range of -40? to +85?, ensuring reliable performance in various environments.
General Specs:

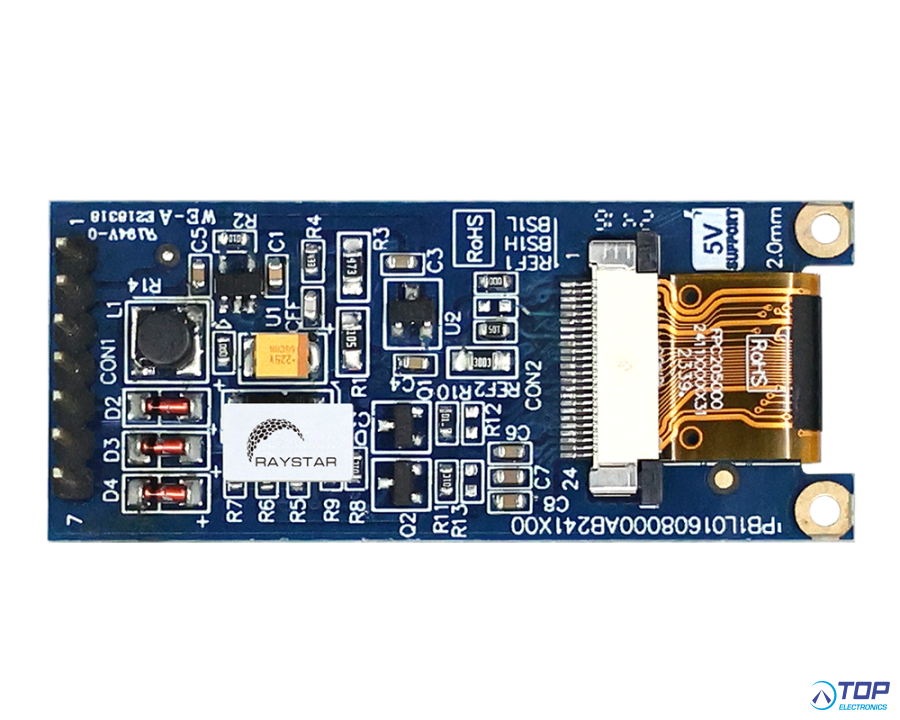

- Structure: COG + PCB
- Size (Diagonal): 1.54 inch
- Dot Matrix / Resolution: 16 × 80 dots
- Module Dimension: 43.5 × 22.5 × 5.96 mm
- Viewing Area: 37.02 × 19.50 mm
- Active Area: 35.02 × 17.50 mm
- Dot / Pixel Size: 0.199 × 0.199 mm
- Dot / Pixel Pitch: 0.219 × 0.219 mm
- Emitting Color: OLED, White
- Support Grayscale: Yes
- Display Mode: Passive Matrix
- Gray Scale: 4 bits
- IC: SSD1320
- Interface: 4-Wire SPI
- Power Supply: 3V
- Duty: 1/80 duty
- Operating Temperature: -40~+80 °C
- Storage Temperature: -40~+85 °C
- Type: OLED Graphic Display
