REA012832KWPP3N00000, 2” PMOLED display Module

More information

Stock
Out of stock
Delivery time
if not in stock: 3 ~ 4 weeks
Part number
REA012832KWPP3N00000
Manufacturer / supplier
Raystar
Datasheet
View datasheet
Contact us Technical support Quotation request

Product specifications

REA012832KWPP3N00000 - 2" Graphic COG+PCB OLED Display with SSD1315 IC

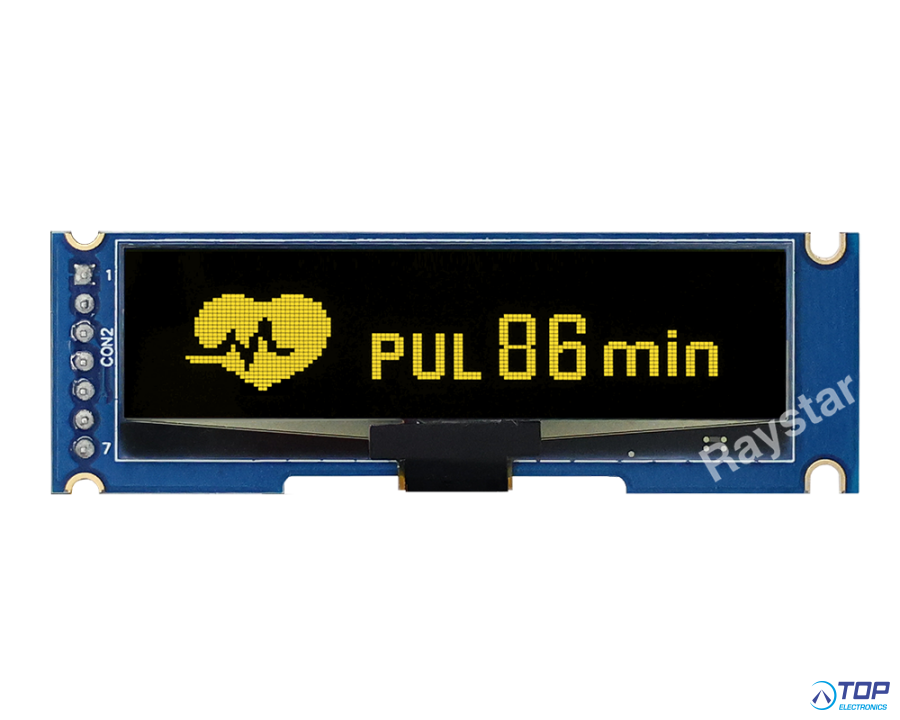

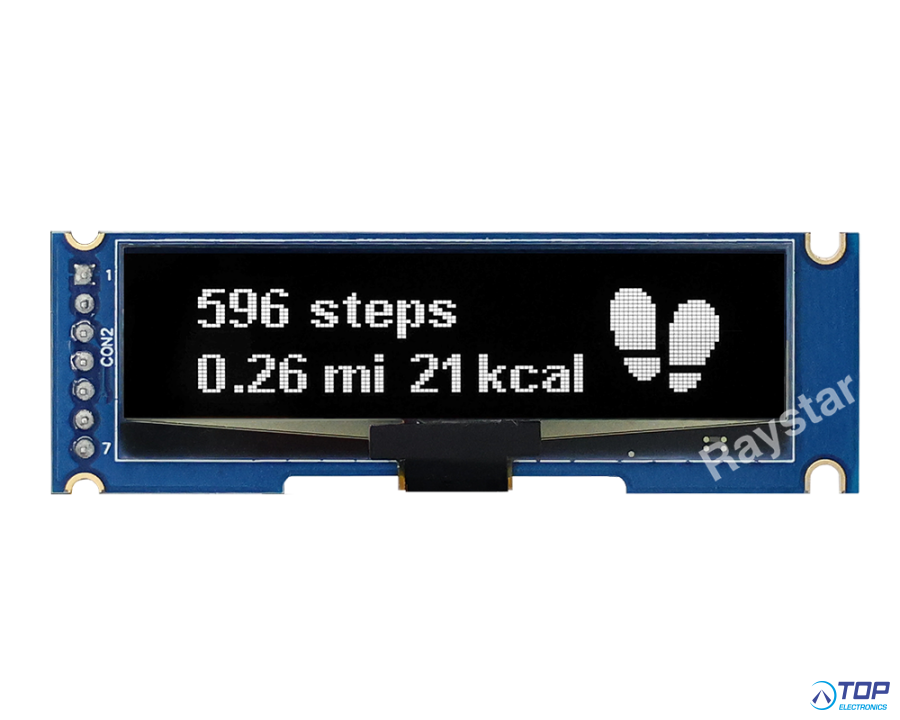

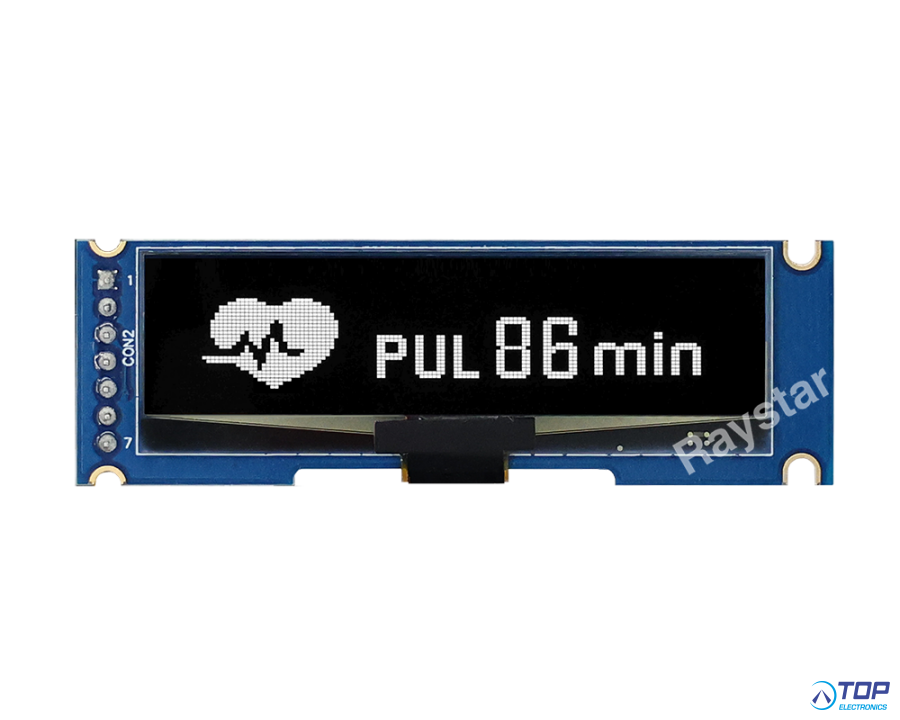

The REA012832K is a 2-inch 128x32 graphic COG+PCB OLED display. It features a resolution of 128x32 pixels and integrates the SSD1315 IC, supporting 4-Wire SPI interfaces with 1-bit grayscale (White/Black) display capability. With an impressive 10,000:1 contrast ratio, the display offers superior visual clarity, surpassing traditional display technologies.

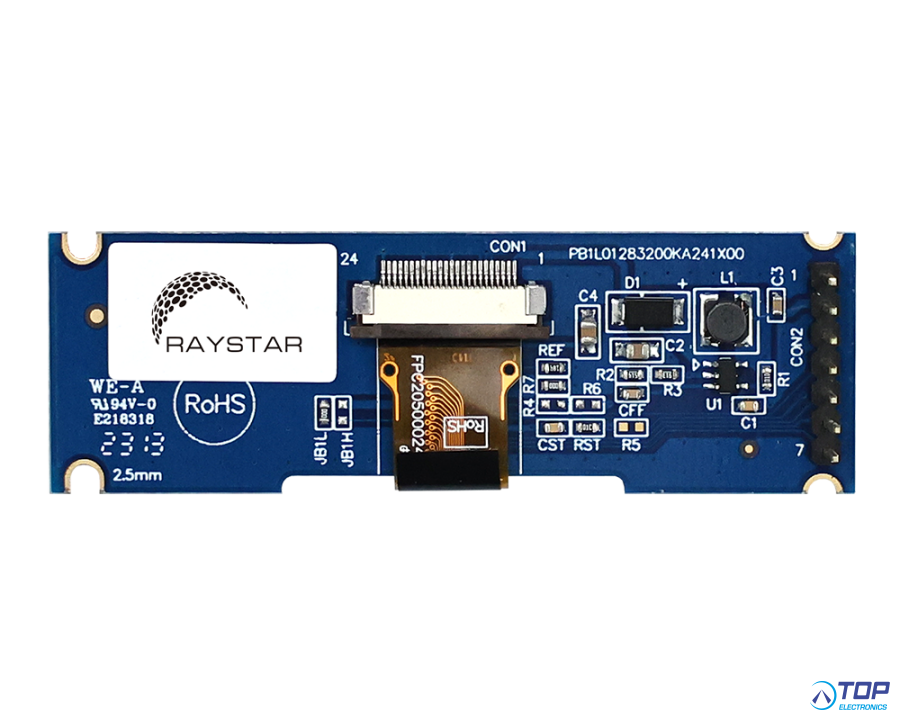

Additionally, the PCB's screw hole design ensures secure installation, making it suitable for diverse applications. Its logic supply voltage ranges from 2.8V to 3.3V, with 3.0V as the typical operating value. Engineered for reliability, the module operates effectively in extreme environments, with an operating temperature range of -40℃ to +80℃ and a storage temperature range of -40℃ to +85℃.

General Specs:
- Structure: COG + PCB
- Size (Diagonal): 2 inch
- Dot Matrix / Resolution: 128 × 32 dots
- Module Dimension: 59.0 × 18.86 × 5.96 (Max) mm
- Viewing Area: 53.535 × 12.695 mm
- Active Area: 50.535 × 10.695 mm
- Dot / Pixel Size: 0.370 × 0.310 mm
- Dot / Pixel Pitch: 0.395 × 0.335 mm
- Emitting Color: OLED, White / Yellow
- Support Grayscale: Yes
- Display Mode: Passive Matrix
- Gray Scale: 1 bits (White/Black)
- IC: SSD1315
- Interface: 4-Wire SPI
- Power Supply: 3V

--- Raystar product ---
