Product specifications
WuT 57730

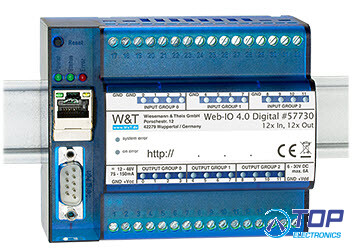

WEB-IO 4.0 Digital 12x In / 12x Out
Switch, monitor and count ...
With the Web-IO 4.0 Digital switching signals can be controlled, acquired and monitored over TCP/IP Ethernet. Numerous web and network services are available for reporting changes on the inputs and outputs - even directly in a browser. With protocols such as MQTT and REST the Web-IO is an ideal fit in the world of Industry 4.0 and the Internet of Things.
Switching signals:
-12 switching inputs:
-Digital 24V inputs
-32-bit pulse counter
-12 switching outputs:
-Digital 24V outputs
-(12V, 48V, 110V, 230V via coupling relays)
-Drive up to 500 mA
-Short-circuit-protected
Connectivity:
-Intuitive Web interface for simpler operation
-Select between German or English
-Switching the outputs directly from the Web interface
-Adaptation for smartphone
-HTTP and HTTPS
-Current Industry 4.0 protocols:
-REST and MQTT support
-AMQP on request
-Box-to-Box
-Pass switching signals over the network 1:1
-Alarm and reporting functions:
-Email for alarm sending or as status report
-SNMP polling / alarm traps
-Switching your outputs in alarm situations
-Switching the outputs on another Web-IO
-HTTP requests for controlling third-party devices
-Up to 12 actions can be configured
-Dynamic integration into other Web sites:
-Direct access to current measurement values via HTTP requests. AJAX and JavaScript
-Additional software interfaces for incorporating into your systems/databases:
-OPC
-Modbus TCP
-Syslog
-TCP and UDP sockets, client and server
-FTP (data logging)
-Internal clock
-Time synchronization via time server calibration
-Battery-backed device clock
-Possible applications:
-Remote monitoring and fault messaging
-Cross-location switching
-House and building automation
-Process monitoring and visualization
-Light, gate and cabinet control
-Machine Data Collection (MDC)
Power supply:
-External power
-Screw terminal
-12 - 24V DC
Standards & more
-Conforms to standards both in office and industrial environments:
-High noise resistance for industrial environments
-Low noise emission for residential and business areas
-5 year guarantee
Connections, displays and control elements:
- Digital outputs: 12 x digital outputs 6V - 30V, 500mA, Short-circuit-protected, Using our coupling relays voltages of even up to 230V can be switched
- Digital inputs: 12 x digital inputs, Max. input voltage +/-30 V, Protected against polarity reversal within this range, Switching threshold 8V +/- 1V, "On" current = 2.2 mA, integrated 32-bit counter
- Network: 10/100BaseT autosensing
- Power supply: 12-48V DC (ca. 100mA@24V)
- Galvanic isolation: Digital outputs - network: min. 1000 V, Digital inputs - network: min. 2000 V, Digital inputs - outputs: min. 1000 V
- Adapters: 1 x 16x screw terminal block for IOs, 1 x DB9 for RS232 auxiliary port, 1 x RJ45 for network
- Displays: Status LEDs for network, 24 LEDs for digital statuses
Data transmission
- Protocols: HTTP and HTTPS, TCP and UDP sockets, client and server, MQTT - Publish and Subscribe, REST, SNMP including traps, SMTP e-mail sending, OPC server, Modbus TCP, Inventory keeping, group management
- Response times: Data and switching traffic: typically 20 ms
Housing and other data
- Housing: Plastic housing for top hat rail installation, 106.8x87.8x62.6 (lxwxh)
- Enclosure rating: IP20
- Weight: approx. 250 g
- Storage temperature: -25°C - 70°C
- Operating temperature: 0°C - 60°C
- Permissible relative humidity: 5..95% RH (non-condensing)
- MTBF: 357,539 h @25°C per MIL-HDBK-217
- Scope of delivery:1 x Web-IO 4.0 Digital, 2xInput, 2xOutput, 1 x Quick Guide
**Power supply and other accessories can be ordered separately**
- Wiesemann & Theis product -
