Product specifications
WuT 53665

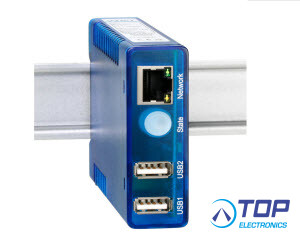

USB-Server Industry Isochron
Interfaces:
-2x USB 2.0 USB ports
-Simultaneous connection of PC A to USB1 and PC B to USB2 possible
-Both ports have max. 500mA load capacity
-1x Ethernet 10/100BaseT
--Autosensing/Auto-MDIX
a-lternate hardware configuration
-For 100/1000BaseT, see USB-Server Gigabit
Management and connectivity:
-Remote configuration
-Startup using EasyStart!, DHCP
-Web-Based-Management
-Fully USB 2.0 compatible
-Support of all USB modes (Control, Bulk, Interrupt, Isochronous)
-USB Redirector implemented as a Windows kernel-mode driver
-XP/2003/Vista/2008/7/2008R2/8/2012/8.1/2012R2/10 incl. Server-, 64B-bit editions and virtual systems
-Communication even without user login
-Intuitive graphical configuration tool
-Additional command line tool for batch-/script-controlled device incorporation
-Full TCP/IP support incl. routing and DNS
Power supply:
-External
-Screw terminals, 12V-48V DC
-Power-over-Ethernet (PoE)
-Phantom power using data pairs
-Power over unused wire pairs
Standards & more
-Conforms to standards both in office and industrial environments:
-High noise resistance for industrial environments
-Low noise emission for residential and business areas
-5 year guarantee
Product properties:
Fully USB 2.0 compatible
Support of all USB modes (Control, Bulk, Interrupt, ++ Isochronous)
USB Redirector implemented as a Windows kernel-mode driver
XP/2003/Vista/2008/7/2008R2/8/2012 incl. Server-, 64-bit editions and virtual systems
Communication even without user login
Intuitive graphical configuration tool
Additional command line tool for batch-/script-controlled device incorporation
Full TCP/IP support incl. routing and DNS

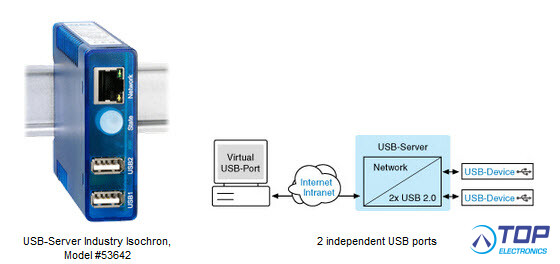

2 independent USB ports
Simultaneous connection of PC A to USB1 and PC B to USB2 possible
Both ports have max. 500mA load capacity
Supply voltage via PoE or from external 24-48VDC power supply
Interoperability guarantee
We’re compatible with everything, everywhere
Conforms to standards both in office and industrial environments:
Increased noise immunity for industrial areas
Stricter noise emission for residential and commercial areas
The little box contains everything you need for remoting USB devices into a network. Whether you use it as an extension across your network or together with other user devices such as scanners, printer, dongles, measuring instruments etc.: USB devices connected on the USB-Server Isochron behave just as if they were connected directly to your Windows PC. Support of all USB modes (Control, Interrupt, Bulk, Isochron) ensures trouble-free communication both with traditional USB devices as well as with isochronal devices in audio, video and measurement technology. We can forego a long list of compatible devices - everything means everything.
Everything included
On the software side, as a core driver the USB Redirector integrates the virtual USB ports into the Windows plug-and-play system. As with local installations, the USB device can be operated without the need for a Windows user login. The USB-Server supports cross-network, routed connections and provides functions for automatically restarting communication after network faults and interruptions.
- Wiesemann & Theis product -
