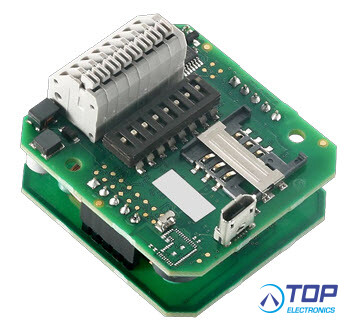

T4W2-F02B6, TWN4 Palon Compact M Light Multi LF/HF

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
T4W2-F02B6
Manufacturer / supplier
Elatec
Datasheet
View datasheet
€ 157.57 excl VAT
Contact us Technical support Quotation request

Product specifications

T4W2-F02B6
Multi-frequency RFID module (LF/HF) with NFC support

The RFID readers and modules of the TWN4 Palon Compact family support two RFID frequencies (125 kHz / 13.56 MHz), NFC and Bluetooth Low Energy (BLE). All devices are available with an NXP or LEGIC SM-4200 frontend and support a wide range of interfaces, for instance USB, RS-485 and, optionally, the OSDP protocol. A cost-optimized “light” variant with fewer interfaces and without BLE is also available. Although the readers are general-purpose devices, they are particularly appropriate for time attendance and access control. Depending on the intended application, the readers are available as modules for integration into a host device, as panel mount readers with IP65 protection or as in-wall readers with an IP54 protected housing. Key features of the TWN4 Palon Compact M Light reader module include an optimized form factor for easy integration into any host device, the possibility to use many different interfaces and a powerful SDK for writing apps that are executed directly on the module. Additionally, the module can read more than 60 RFID technologies from low (LF) and high frequency (HF) bands, including NFC. This gives the option to select as many of the technologies required instead of being forced to select just a few ones.

Special features:
+ Possibility to read more than 60 RFID technologies
+ Supports many interfaces, like USB and RS-485 (OSDP protocol optionally)
+ Two RFID frequencies (125 kHz/13.56 MHz) and NFC support in a compact form factor for easy integration
+ Powerful SDK for writing apps which are executed directly on the module
+ Firmware update in the field possible
+ On-board 18 kB flash storage, e.g. for storing user accessible non-volatile data
+ Supports transparent data exchange with RFID media + CCID and PC/SC 2.01

- Elatec product -
