T4MR-F, TWN4 Multitech HF Mini Reader, 5V TTL st

More information

Stock
16 pcs
Delivery time
please contact us for more information
Part number
T4MR-F
Manufacturer / supplier
Elatec
Datasheet
View datasheet
€ 71.85 excl VAT
Contact us Technical support Quotation request

Product specifications

ELATEC TWN4 MultiTech HF Mini reader is designed for integration into machines, handheld computers or any other human
interface devices such as displays, panels, etc. The focus has especially been set on size, flexibility and price. Thanks to its compact
dimensions, integration directly on a PC board is possible.

The TWN4 Simple Protocol enables quick software development cycles. All host communication is done via USB or asynchronous
serial CMOS/TTL interface. The module offers positions for placement of two LEDs that can be controlled by software.
An external Secure Access Module (SAM) is supported for enhanced security and cryptographic performance. This enables the
application to perform secure transactions.

Special features:
- Powerful SDK for writing apps which are executed directly on the reader
- Firmware update in the field possible
- Direct chip-commands support
- Operating voltage: 3.15 V – 5.5 V DC

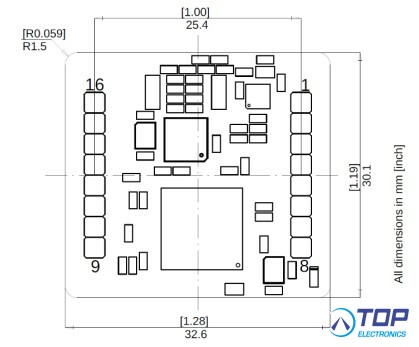

- Compact design (33 x 30 x 11 mm)
- Integrated antenna
- 4 GPIOs
- Industrial operating temperature: -25 °C to +80 °C
- Pin compatible upgrade from Mini Reader T3MR-F
- Firmware based on versatile TWN4 technology
- Supports quick (re)configuration over network and over wireless interface with TWN4 CONFIG Card
- TWN4 Upgrade Card for I option available on request
- 3D construction data (STEP) available on request

- Elatec product -
