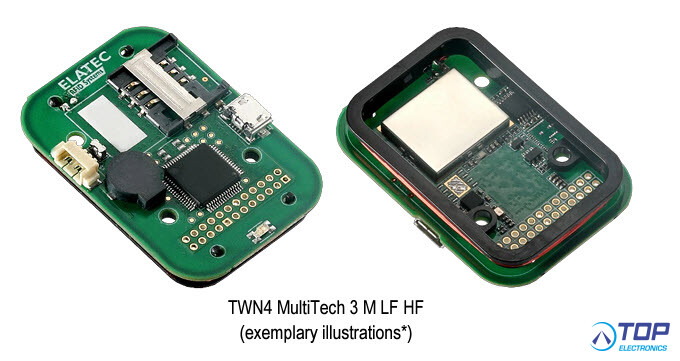

T43O-F6C0, TWN4 MultiTech 3 RFID reader/writer

More information

Stock
Out of stock
Delivery time
please contact us for more information
Part number
T43O-F6C0
Manufacturer / supplier
Elatec
Datasheet
View datasheet
€ 101.58 excl VAT
Contact us Technical support Quotation request

Product specifications

T43O-F6C0
Multi-frequency RFID module (LF/HF) with NFC support

The TWN4 MultiTech 3 universal RFID reader/writer modules support all current RFID standards for the frequency ranges 125 kHz as well as the 13.56 MHz band, including NFC.

The powerful reader modules of the ELATEC TWN4 MultiTech 3 family combine a compact form factor with optimized read/write performance. All devices integrate RFID (125 kHz and 13.56 MHz), NFC and, optionally, Bluetooth Low Energy (BLE) capabilities. Thanks to their reduced size, the modules can be easily used for almost all applications where small size and full performance matter. Furthermore, they are compatible with the most common host interfaces, such as USB, and they can also be configured with different connector options. TWN4 MultiTech 3 M LF HF key features include a powerful SDK for writing apps that are executed directly on the module, the possibility to upgrade the firmware in the field and transparent data exchange with the RFID media. Additionally, the module can read more than 60 RFID technologies from low (LF) and high frequency (HF) bands, including NFC. This gives the option to select as many of the technologies required instead of being forced to select just a few ones.

Special features:
+ Possibility to read more than 60 RFID technologies
+ Two RFID frequencies (125 kHz/13.56 MHz) and NFC support
+ Optionally available with a 24-pin header, further configurations available
+ Powerful SDK for writing apps which are executed directly on the module
+ Firmware update in the field possible
+ On-board 18 kB flash storage, e.g. for storing user accessible non-volatile data
+ Supports transparent data exchange with RFID media + CCID and PC/SC 2.01
+ Optimized read/write performance combined with a compact form factor

- Elatec product -
