Product specifications
T4BT-BB2BEL6

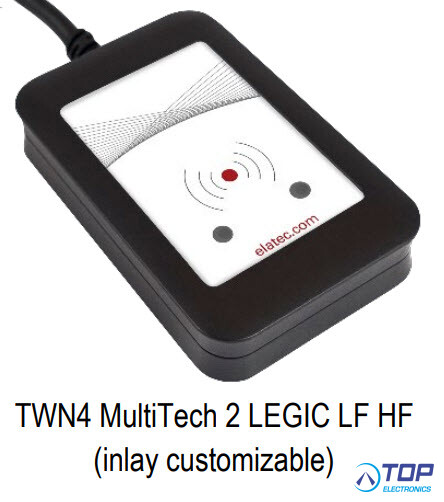

TWN4 MULTITECH 2 LEGIC LF HF
PROGRAMMABLE RFID READER/WRITER FOR LF/HF/NFC with LEGIC SM-4200 - USB Black
ELATEC TWN4 family of RFID readers and writers allows users to read and write to almost any 125 kHz and 13.56 MHz tags and/or
labels – it supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID, LEGIC, etc. and ISO standards
like ISO 14443A/B (T=CL), ISO 15693, ISO 18092 / ECMA-340 (NFC).
The new generation is a direct enhancement to the successful TWN3 family as it comes in the same mechanical dimensions (OEM
PCB and desktop housing). The readers support host communication via USB or RS-232.
Special features:
+ Powerful SDK for writing apps which are executed directly on the reader
+ Firmware update in the field possible
+ On-board 18 kB flash storage, e.g. for storing user accessible non-volatile data
+ Direct chip-commands support
+ Two on-board SAM sockets (Secure Access Module)
+ CCID and PC/SC 2.01
+ Supports quick (re)configuration over network and over wireless interface with TWN4 CONFIG Card
+ TWN4 Upgrade Card for P option available on request

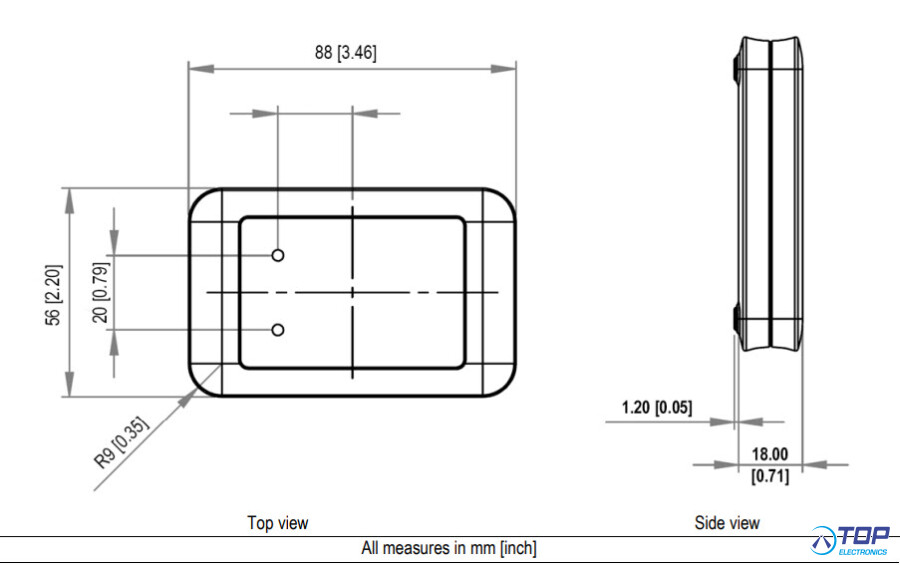

+ 3D construction data (STEP) available on request
CONTACT US FOR OTHER OPTIONS: Readers with LEGIC SM-4200
T4BT-BB2WEL6 USB White
T4BT-BR2BEL6 RS-232 Black
T4BT-BR2WEL6 RS-232 White
T4BT-BB2BEL6-P USB Black, P option
T4BT-BB2WEL6-P USB White, P option
T4BT-BR2BEL6-P RS-232 Black, P option
T4BT-BR2WEL6-P RS-232 White, P option
T4BT-BB2BEL6-PI USB Black, PI option
T4BT-BB2WEL6-PI USB White, PI option
T4BT-BR2BEL6-PI RS-232 Black, PI option
T4BT-BR2WEL6-PI RS-232 White, PI option
ACCESSORIES
HOLDER(S)
HKSI-B - Snap-In Holder black
HKSI-W - Snap-In Holder white
HKBR-B - Bracket Holder black
HKBR-W - Bracket Holder white
-- Elatec product --
