Product specifications
ART12456

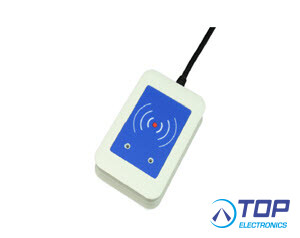

TWN3 Multi125 DT-9pol-w
Desktop, white, RS232 cable 2.0m, with integrated 125kHz antenna
The TWN3 Multi125 transponder reader is designed for easy integration into various applications.
The device supports either USB or RS232 communication just in dependence on the connection cable and is available as ready-to-connect desktop reader in a slim line black or white housing or as a OEM board (PCB) without housing for direct integration into embedded applications.
Readers can be programmed with a script language for autonomous execution of even complex commands like login procedures, increment/decrement functions and many more.
Technical Data
-Housing: Material ABS UL94-V0, colour black or white
-Frequency: 125 kHz
-Dimensions: Desktop Reader: 88mm x 56mm x 18mm
-Power Supply: 5V ± 10% via communication cable (USB); serial version requires external power supply
-Supply Current: 130mA typ. (USB, normal operation); 220mA peak
-Temperature Range: Storage: -45°C up to +85°C (-49°F up to 185°F) Operating: -25°C up to +80°C (-13°F up to 176°F)
-Antenna: Aircoil
-R/W Distance: up to 100 mm / 4 inch (depending on transponder)
-Host Interfaces: USB, RS232.
-OS Support: Windows XP, Windows Vista, Windows 7 (32/64 bit) and Linux
-Communication Parameters:
-USB: Full speed (12 MBit)
-RS232: Baudrate: 1200, 2400, 4800, 9600
-Parity: none, even, odd
-Modes of Operation: USB keyboard emulation
USB virtual COM port (bi-directional communication)
Direct access to built-in RFID module (transparent mode)
Special Features: Powerful scripting language
Supported TranspondersEM4100, EM4102, EM4105, EM42002)
-EM4150, EM4350, EM4450
-FX-B
-HITAG 1, HITAG 2, HITAG S (without crypto mode)
-Miro
-Q51)
-T55571),T55671), T55771)
-TTAN (4x50), UNIQUE, ZOODIAC
-Certifications: CE, R&TTE, RoHS-II compliant, FCC, IC, ACA, VCCI
