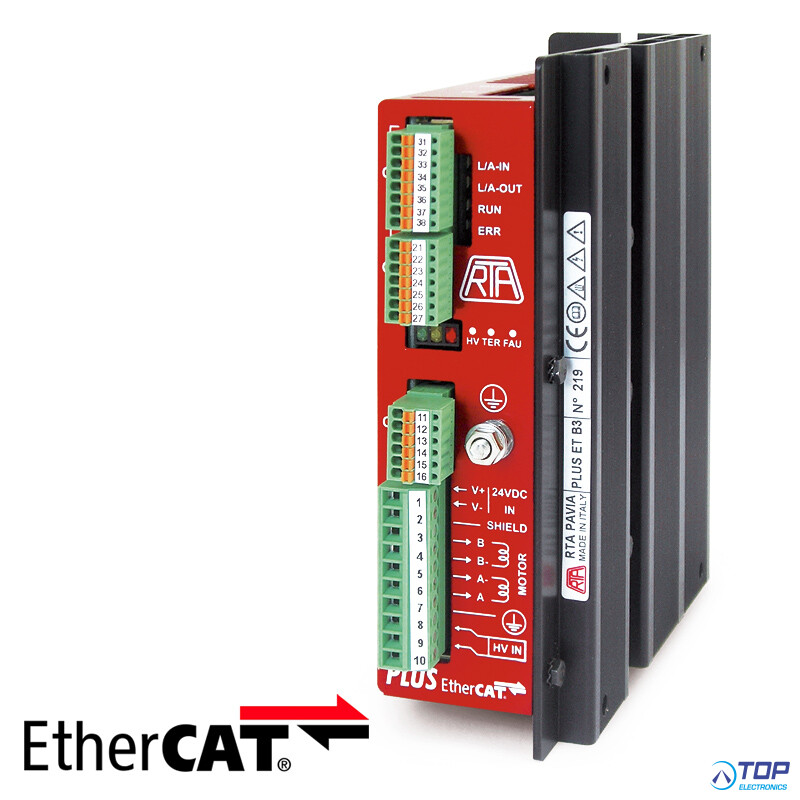

PLUS ET B3, Stepping motor drive 62Vac - 6A

More information

Stock
Out of stock
Delivery time
if not in stock: 1 ~ 2 weeks
Part number
PLUS ET B3
Manufacturer / supplier
R.T.A. Srl
Datasheet
View datasheet
€ 317.00 excl VAT

Product specifications

R.T.A. - PLUS ET B3

- New series of stepping motor drives with EtherCAT interface, based on the following versions:
- PLUS ET A3: with DC power supply (39-85 VDC)
- PLUS ET B3: with AC power supply (28-62 VAC)

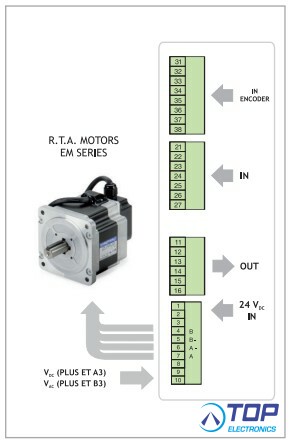

- Drives optimized for coupling with SANYO DENKI stepping motors, fitted with encoder.
- Compact system, developed to offer a wide variety of integrated functions and optimized for the most demanding motion control applications.

HIGHLIGHTS
- Communication by means of EtherCAT interface.
- Modes of operation: PROFILE POSITION and CSP.
- Full digital microstepping drive.
- Wide range of stepping motors to be coupled with: holding torque up to 9.2 Nm and flange size up to 86 mm.
- Extremely compact size.
- A highly sophisticated operation system, preserving anyhow the traditional ease of use of R.T.A. drives.

TECHNICAL SPECIFICATIONS
- Version: drive housed in a metallic box 152 x 129 x 46 mm, equipped with plug-in connectors.
- Range of operating voltages: 39-85 VDC.
- Nominal current.: 6 Amp.
- Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection.
- Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
- Optoinsulated auxiliary and programmable inputs and outputs.
- Optimized for coupling with SANYO DENKI stepping motors, fitted with encoder.
- External fans not needed.
- Warranty: 24 months.

SETTING BY MEANS OF EtherCAT INTERFACE
- Wide range of motor phase current setting.
- Motor current overboost.
- Intelligent management of the current profile.
- Communication by means of EtherCAT (CoE) interface.
- Modes of operation: PROFILE POSITION and CSP.
- Different variety of HOMING operation modes.
- Encoder feedback.
