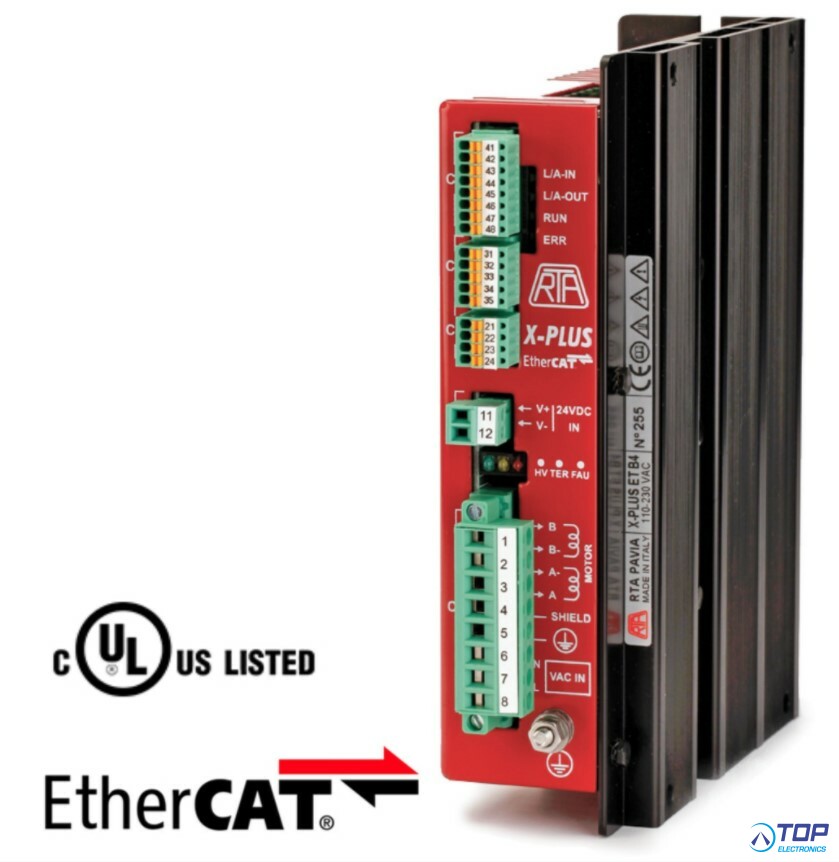

X-PLUS ET B4, Stepping motor drive 110-230Vac - 4A

More information

Stock
Out of stock
Delivery time
if not in stock: 1 ~ 2 weeks
Part number
X-PLUS ET B4
Manufacturer / supplier
R.T.A. Srl
Datasheet
View datasheet
€ 387.14 excl VAT

Product specifications

R.T.A. - X-PLUS ET B4

New series of stepping motor drives with EtherCAT interface and direct input from the main AC power supply (from 110 VAC to 230 VAC).
- Optimized for coupling with SANYO DENKI stepping motors, fitted with encoder.
- Possibility to be connected directly from the main (from 110 VAC to 230 VAC), saving on transformer use.
- High performance in terms of power and able to further increase the application potential.

HIGHLIGHTS
- Communication by means of EtherCAT interface.
- Modes of operation: Profile Position and CSP.
- Full digital microstepping drive.
- Wide range of SANYO DENKI stepping motors to be coupled with: holding torque up to 9,2 Nm and flange size 86 mm.
- Extremely compact size.
- A highly sophisticated opertaion system, preserving anyhow the traditional ease of use of R.T.A. drives.

TECHNICAL SPECIFICATIONS
- Version: drive housed in a metallic box 169 x 129 x 46 mm, equipped with plug-in connectors.
- Range of operating voltage: 110-230 VAC.
- Protections:
-Protection against under voltage and over voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection.
- Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
- Optoinsulated auxiliary and programmable inputs and outputs.
- Optimized for coupling with SANYO DENKI stepping motors, fitted with encoder.
- External fans not needed.
- Warranty: 24 months.

SETTING BY MEANS OF EtherCAT INTERFACE
- Wide range of motor phase current setting.
- Motor current overboost.
- Intelligent management of the current profile.
- Communication by means of EtherCAT (CoE) interface.
- Modes of operation: Profile Position and CSP.
- Different variety of HOMING operation modes.
- Encoder feedback.

- R.T.A. product -

Related products

PLUS ET A3

Stepping motor drive 85Vdc - 6A

€ 308.46

PLUS ET B3

Stepping motor drive 62Vac - 6A

€ 317.00
