Product specifications
Secustos SQ80-K LEGIC (T4SW)
Multi-frequency access control reader
Secustos is a design-oriented multi-technology reader family. This reader for physical access applications is one of the flattest readers on the market. It supports up-to-date interfaces and protocols, like RS-485 and OSDP, but also Wiegand. The IP65 protected housing
is made of high-class materials that confer the reader a unique look and feel.
Secustos SQ80 K LEGIC supports a broad range of HF and LF contactless technologies. Many mobile use cases can be facilitated with its NFC and BLE functions, like authentication and data communication.
SPECIAL FEATURES:
- Appealing flat design with premium look and feel, different colors for perfect architectural integration
- Easy installation with in-wall flush-mount boxes or on-wall mounting frame
- Supports LEGIC Connect thanks to integrated LEGIC frontend chip
- Water and dust protected, IP65 potted housing
- Interfaces: RS-485, OSDP protocol or Wiegand
- Additional function key, backlit keypad, dimmable LEDs
- Proximity sensor, ambient light sensor, tamper switch
- Versatile remote update and configuration features
- Mobile app for device parameter configuration via contactless NFC
ORDER CODES:

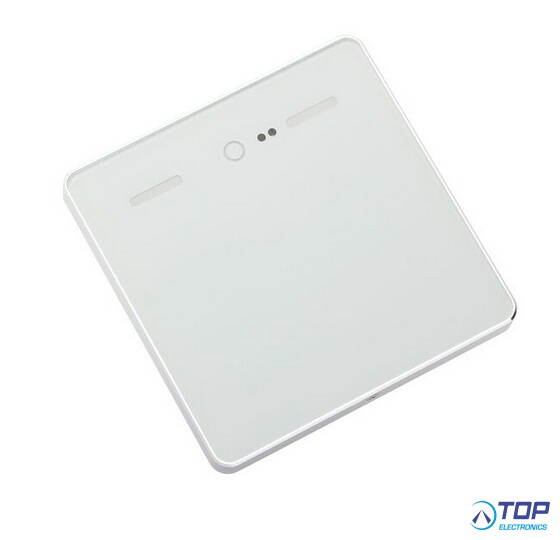

T4SW-DQ10NDSW7-OSEU(1): Reader with silver frame/white glass front

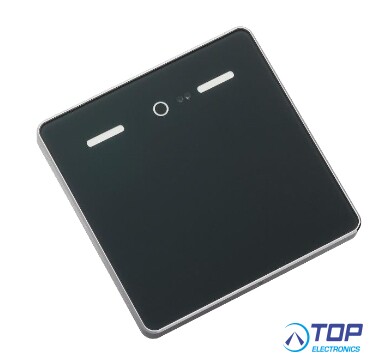

T4SW-DQ10NDGY7-OSEU(1): Reader with gray frame/gray glass front
T4SW-DQ10NDSW7-OSUS(2): Reader with silver frame/white glass front
T4SW-DQ10NDGY7-OSUS(2): Reader with gray frame/gray glass front
(1)Not available in countries/regions subject to FCC or IC approval.
(2)Only available in countries/regions subject to FCC or IC approval.
