Product specifications
ERF4025

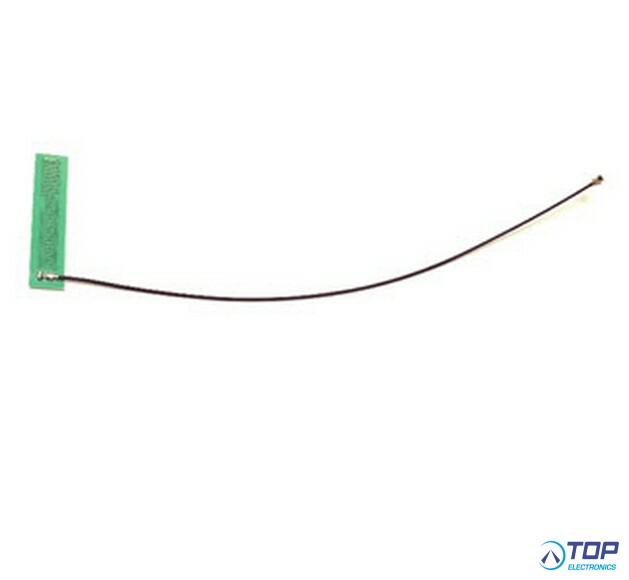

The ERF4025 antenna is an internal UMTS antenna with a U.fl connector.
The antenna can be used for applications such as,M2M, LoRa, Zigbee, GSM/GPRS , NB-IoT, CAT-M and more.
Electrical Properties
Frequency Band: 824 ~ 960 / 868 / 1710 ~ 1880 / 1990 ~ 2170 MHz
Nominal Impedance: 50 ohm
Polarization: Vertical
V.S.W.R: < 2.5
Mechanical Properties
Antenna Type: Internal Antenna
Mounting Method: Adhesive
Connector Type: U.FL
Antenna Dimensions: 45*10*0.2 mm ± 0.1
Cable Length: 200 mm
Cable Type: RF1.13
Operating Temperature Range: -20°C~+60°C
Storage Temperature Range: -30°C~+70°C
