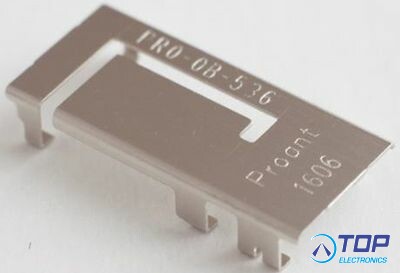

ProAnt 536, Onboard Antenna, SMD, WLAN

More information

Stock
998 pcs
Delivery time
if not in stock: 3 ~ 4 weeks
Part number
ProAnt 440
Manufacturer / supplier
ProAnt
Product brief
View product brief
Specification 1
Frequency: 2,4Ghz - 2,5Ghz
Specification 2
Impedance: 50 ohm
Specification 3
Standard Package: 1000pcs
€ 0.99 excl VAT
Contact us Technical support Quotation request
PRO-OB-536.pdf
Quantity
Unit price
From 10 pcs€0.87
From 100 pcs€0.69
From 500 pcs€0.54

Product specifications

ProAnt 536
OnBoard SMD 2400, 2.4Ghz ISM band Antenna

Small antenna for embedded products that cover the ISM band 2400 -2500 MHz and 5180-5850 MHz used for WLAN and is also suitable for applications in Bluetooth and ZigBee etc.

The OnBoard SMD concept offers features like:
- SMD compatibility
- Tape on reel delivery
- Low loss material
- PCB on-ground implementation
- Simple fine tuning by matching network
- RoHS compliance
- Low cost

Technical data
- Part number: PRO-OB-536
- Frequency: 2400 – 2500 MHz, 5150-5850 MHz
- Impedance: 50 Ω
- Return loss: <- 8dB
- Total efficiency: > 60% (-2.2dB)
- Dimensions: 14.2 x 6.6 x 2.5 mm (0.56 x 0.26 x 0.1 in)
- Assembly: Pick and place
- Soldering: Reflow or equivalent
- Packing: Tape and reel
- Temperature: -40 to +125⁰ C
- RoHS status: Compliant with EU directive 2011/65/EU (RoHS 2)
- Shelf life: 10 years MSL Level 1, unlimited
- MSL: Level 1, unlimited

- ProAnt AB product -
