Product specifications

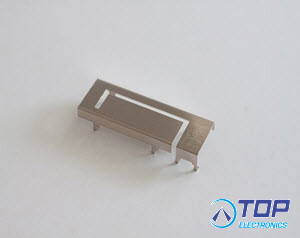

ProAnt 518
Onboard SMD antenna for 868Mhz + 2.4GHz
Small antenna for embedded products on the 868 and 2400 MHz ISM bands, suitable for applications in 6LoWPAN and ZigBee etc.
The OnBoard SMD concept offers features like:
- SMD compatibility
- Tape on reel delivery is possible
- Low loss material
- PCB on-ground implementation
- Simple fine tuning by matching network
- RoHS compliance
- Low cost
Technical data
- Frequency 860 -870 MHz and 2.4 -2.5 GHz
- Impedance 50 ohm
- Return loss <-6dB
- Total efficiency > 40% (-4dB)
- Dimensions: 34 x 11.6 x 5.0 mm
- Assembly: pick and place
- Soldering reflow or equivalent
- Packing Tape and reel
- Temperature -40 to + 125 °C
- ProAnt AB product -
