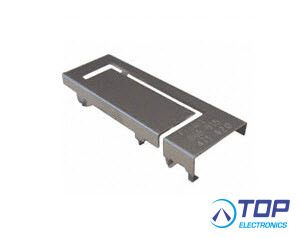

ProAnt 471, Onboard Antenna, SMD, 868/915 MHz

More information

Stock
In stock
Delivery time
if not in stock: 3 ~ 4 weeks
Part number
ProAnt 471
Manufacturer / supplier
ProAnt
Product brief
View product brief
Datasheet
View datasheet
User Guide
View User Guide
€ 1.45 excl VAT
Quantity
Unit price
From 10 pcs€ 1.31
From 100 pcs€ 1.05
From 500 pcs€ 0.79

Product specifications

ProAnt 471
Onboard SMD antenna for 868/915MHz

Small antenna for embedded products on the 868 or 915 MHz ISM bands.

The OnBoard SMD concept offers features like:
- SMD compatibility
- Tape on reel delivery
- Low loss material
- PCB on-ground implementation
- Simple fine tuning by matching network
- RoHS compliance
- Low cost

Technical data
- Frequency: 860 – 8701), 902 – 9282) MHz
- Impedance: 50 Ω
- Return loss: < -10 dB 1) ; < -6dB 2)
- Total efficiency: 66% (-1.8dB) peak
- Dimensions: 34 x 12 x 5 mm
- Assembly: Pick and place
- Soldering: Reflow or equivalent
- Packing Tape and reel
- Temperature: -40 to +125⁰ C
- Mechanical resistance: Immunity to vibrations IEC/EN 60068-2-6, Fc test Immunity to shock IEC/EN 60068-2-27, Ea test

- ProAnt AB product -

Related products

472

Evaluation Board for ProAnt #471 (868)

€ 20.00

476

Evaluation Board OnBoard SMD 915, #471

€ 25.00
