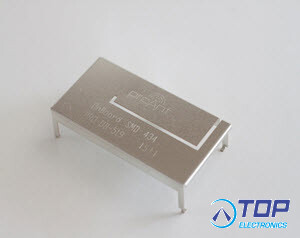

ProAnt 519, Onboard Antenna, SMD, 433Mhz

More information

Stock
20 pcs
Delivery time
if not in stock: 3 ~ 4 weeks
Part number
ProAnt 519
Manufacturer / supplier
ProAnt
Datasheet
View datasheet
User Guide
View User Guide
€ 2.58 excl VAT
Contact us Technical support Quotation request

Product specifications

ProAnt 519
Onboard SMD antenna for 433Mhz

Onboard™ SMD antenna for embedded products for 434 MHz ISM band.

The OnBoard SMD concept offers features like:
- SMD compatibility
- Tape on reel delivery os possible
- Low loss material
- PCB on-ground implementation
- Simple fine tuning by matching network
- RoHS compliance
- Low cost

Technical data
- Frequency: 434 MHz
- Impedance: 50 ohm
- Return loss: <-10dB
- Total efficiency: >25%(-6dB)
- Dimensions: 50 x 25 x 10 mm (1.969 x 0.984 x 0.394 in)
- Assembly: pick and place
- Soldering: reflow or equivalent
- Packing: Tape and reel
- Temperature: -40 to +125 °C

Note: above specification is valid on the Proant evaluation board.

- ProAnt AB product -
