The world's smallest 5GNR monopole antenna - 2JW1683 KATANA - 2J Antennas

October 8, 2020

TOP-electronics and 2J Antennas are excited to introduce the Cutting-Edge 5G Antenna 2JW1683 "KATANA" - The World's Smallest 5GNR Monopole Antenna with Superior Performance across sub-6 GHz frequencies in compact size.

Features:

  • The World's Smallest Monopole 5GNR Antenna
  • Ultra Wide Band sub-6 GHz Antenna
  • Superior Performance in compact size
  • Low Profile form factor - reduces device size
  • Backward Carrier compatibility with 4G LTE / 3G / 2G
  • Hinged Connector allows for 45° to 90° tilt position range
  • Connector Mount Antenna
  • Ground Plane Dependent

KATANA, the world's smallest monopole antenna with superior precision and performance
Katana is the world’s smallest monopole antenna designed for 5GNR applications enhancing mobile broadband (eMBB) and ultra-reliable low-latency communications (URLLC). At only Ø 10 × 80 mm, the 2JW1683 antenna is designed with the new sub-6 GHz technology transmissions. This allows it to travel farther and penetrate solid objects such as buildings and busy urban areas making it ideal for access points and terminals. The 2JW1683 offers a modern and compact form factor that significantly reduces device size and integration complexities with a simple plug-and-play antenna solution while outperforming any competitor. Designed for mobile devices operating within 5GNR / 4GLTE / FirstNet / CBRS / LPWA / CAT-X / CAT-Mx / CAT-NBx / NB-IoT standards. The 2JW1683 antenna also includes backward carrier compatibility with 4G LTE / 3G / 2G mobile devices and offers the new extended LTE B71 at 600 MHz band from TMobile, CBRS B48 and new Sprint/TMobile B25, B26 and B41 bands.

The 2JW1683 is an omni-directional antenna that extends an uninterrupted 360° radiation pattern with extremely high connection reliability while maintaining stable efficiency peak gains across all bands. Combining performance, reliability, and flexibility into a super low profile form factor, makes this antenna the first choice for global broadband mobile applications.

Installation / Environmental

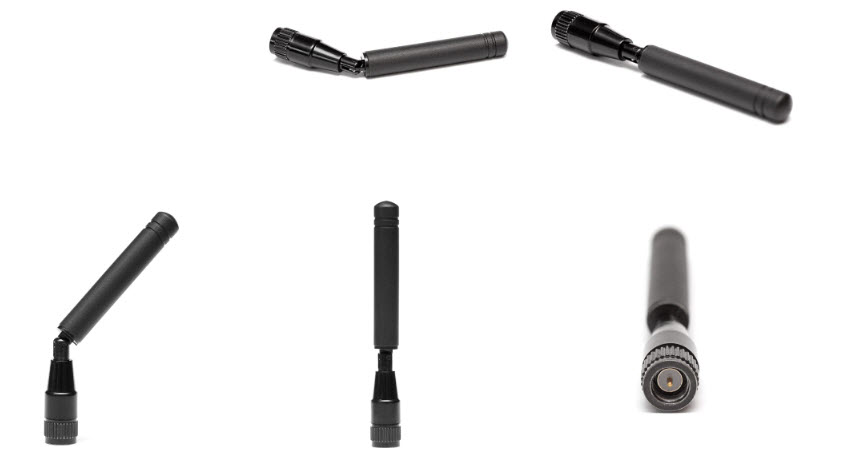

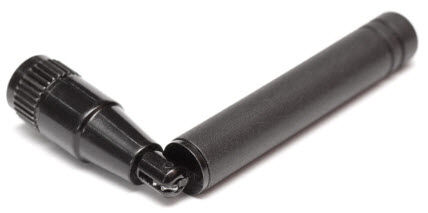

The 2JW1683 comes in white and black standard colors with a SMA-Male in swivel connector that allows for 45° to 90° tilt position range avoiding other objects or antennas and also allowing flexible integration to vertical or horizontal surfaces. The antenna base is made with polyoxymethylene (POM), this thermoplastic is designed for high stiffness, low friction, and excellent dimensional stability. Dimensions of Ø 10 × 80 mm give this ground plane dependent antenna a super low profile form factor. 2J Antennas supports the health of our environment and manufactures all our products without hazardous materials making us fully REACH and RoHS compliant.



Typical applications include

  • Augmented Reality Wireless Devices
  • Telemedicine Systems
  • Smart Cities Mobile Platforms
  • LTE B71 Mobile Devices
  • Artificial Intelligence Data Collecting Modules
  • Manufacturing 4.0
  • Mobile Gateways and Modems
  • Routers, Terminals and Wireless Access Points



Datasheet



Compatible cable assembly for the Antenna
Selecting a high-quality cable and connector that is compatible with the antenna will ensure optimal antenna performance. 2J Antennas offers a wide range of high quality cables from thin Microcoax cables to thick low loss and specialized RF Cables as standard.

Compatible standard mating RF cable assembly for 2JW1683 "KATANA": C485GST-015MC137-UFL

  • SMA Female B/H (jack)
  • IPEX MHF II (U.FL Compatible) / IPEX MHF 4 ®
  • Impedance: 50Ω
  • Frequency range: 0 to 6GHz
  • Other RF connectors and cable lengths available upon request
